UCC2809PTR-2 دیتاشیت

UCC2809PTR-2

مشخصات دیتاشیت

نام دیتاشیت UCC2809PTR-2
حجم فایل 88.266 کیلوبایت
نوع فایل pdf
تعداد صفحات 23

دانلود دیتاشیت UCC2809PTR-2

دانلود دیتاشیت

سایر مستندات

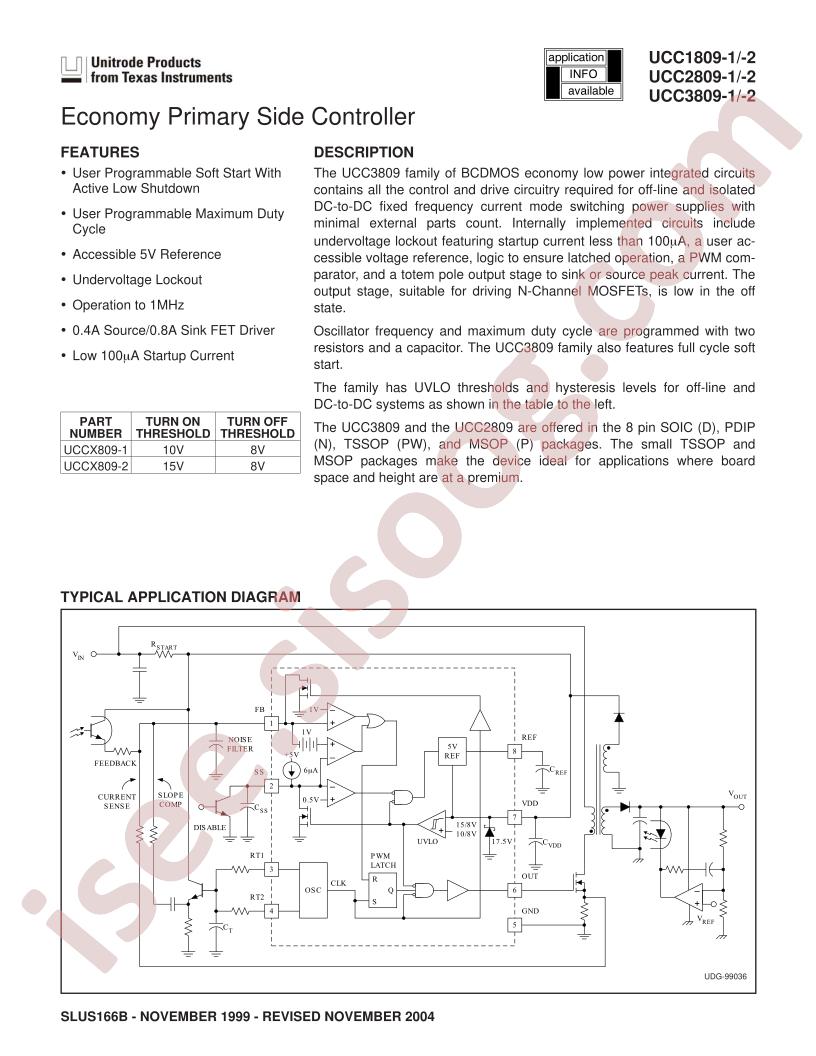

UCC1809-1/-2, UCC2809-1/-2, UCC3809-1/-2 23 pages

مشخصات فنی

  • RoHS: true
  • Category: Power Supply Chip/AC-DC Controllers & Regulators
  • Datasheet: Texas Instruments UCC2809PTR-2
  • Package: VSSOP-8-0.65mm
  • Manufacturer: Texas Instruments
  • Series: -
  • Topology: Boost, Flyback, Forward
  • Package / Case: 8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
  • Output Isolation: Isolated
  • Supplier Device Package: 8-VSSOP
  • Frequency - Switching: 1MHz
  • Voltage - Supply (Vcc/Vdd): 8V ~ 19V
  • Part Status: Active
  • Fault Protection: -
  • Voltage - Breakdown: -
  • Control Features: Frequency Control, Soft Start
  • Duty Cycle: 70%
  • Internal Switch(s): No
  • Voltage - Start Up: 10V
  • Operating Temperature: -55°C ~ 150°C (TJ)
  • Mounting Type: Surface Mount
  • Packaging: Tape & Reel (TR)
  • Base Part Number: UCC280
