دیتاشیت SN74ALS109AN

SN54/74(ALS,AS)109A

مشخصات دیتاشیت

نام دیتاشیت SN54/74(ALS,AS)109A
حجم فایل 1065.021 کیلوبایت
نوع فایل pdf
تعداد صفحات 18

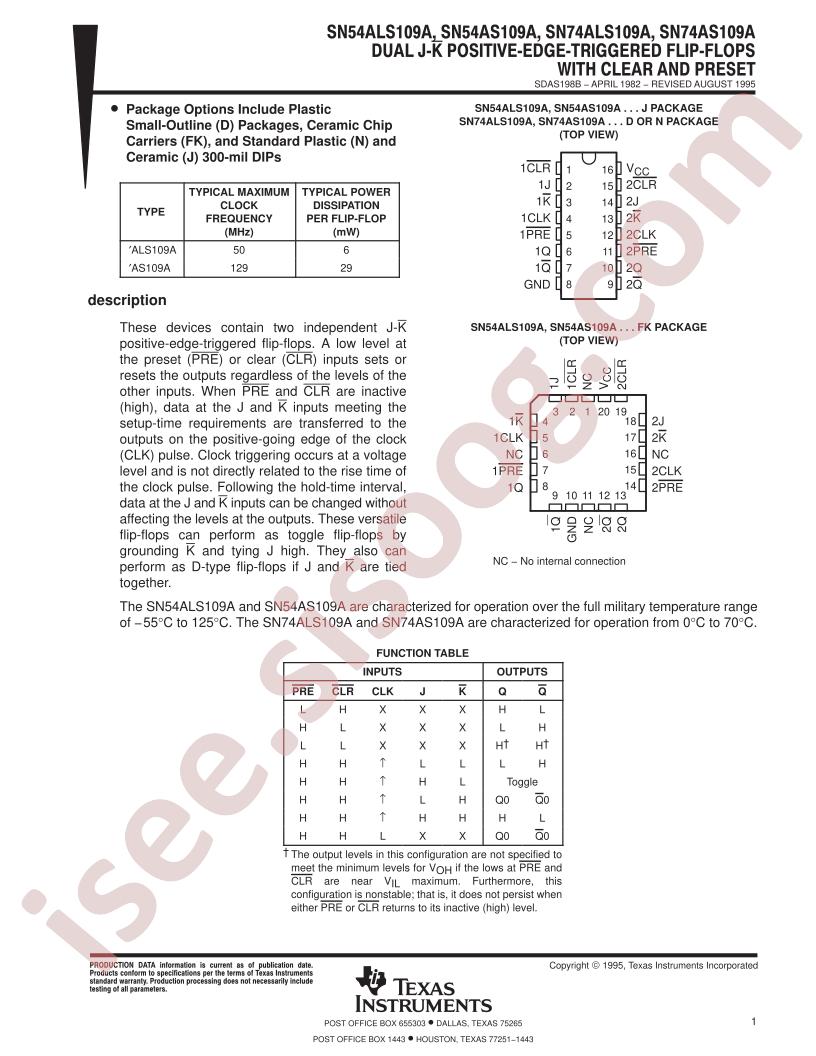

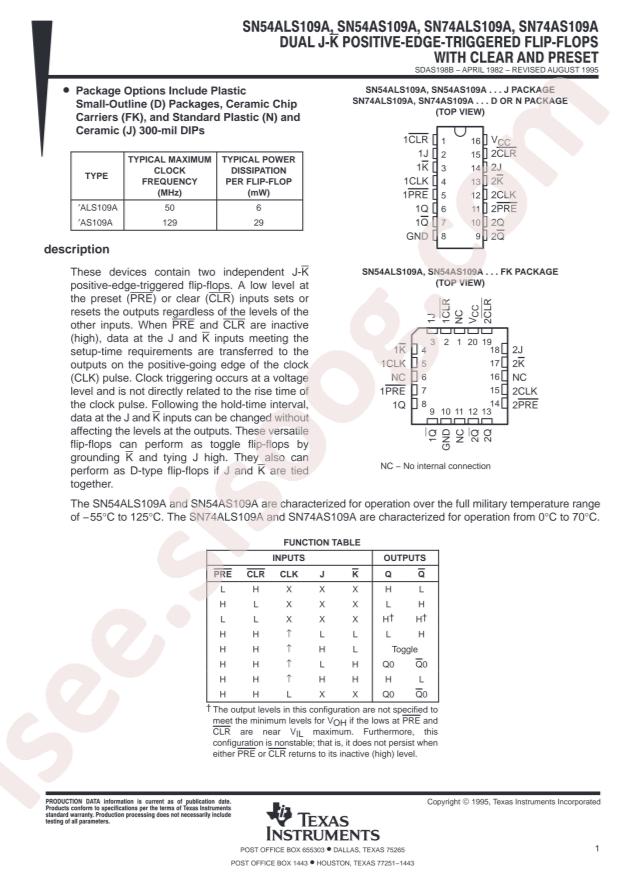

دانلود دیتاشیت SN54/74(ALS,AS)109A

SN54/74(ALS,AS)109A Datasheet

مشخصات

  • RoHS: true
  • Type: JK-Type
  • Series: 74ALS
  • Category: Logic ICs/Flip Flops
  • Function: 置位和复位
  • Datasheet: Texas Instruments SN74ALS109AN
  • Output Type: 互补型
  • Sink Current: 8mA
  • Trigger Type: 上升沿
  • Source Current: 400uA
  • Supply Voltage: 4.5V~5.5V
  • Clock Frequency: 34MHz
  • Number of Elements: 2
  • Operating Temperature: 0°C~+70°C
  • Quiescent Current (Iq): 4mA
  • Maximum Propagation Delay: 18ns@5V,50pF
  • Number of Bits per Element: 1
  • Package: PDIP-16
  • Manufacturer: Texas Instruments
  • Package / Case: 16-DIP (0.300", 7.62mm)
  • Current - Output High, Low: 400µA, 8mA
  • Current - Quiescent (Iq): 4mA
  • Part Status: Active
  • Mounting Type: Through Hole
  • Max Propagation Delay @ V, Max CL: 18ns @ 5V, 50pF
  • Voltage - Supply: 4.5V ~ 5.5V
  • Packaging: Tube
  • Base Part Number: SN74ALS1
  • Supplier Device Package: 16-PDIP
