دیتاشیت LM5022MM

LM5022 Datasheet

مشخصات دیتاشیت

نام دیتاشیت LM5022 Datasheet
حجم فایل 1838.487 کیلوبایت
نوع فایل pdf
تعداد صفحات 40

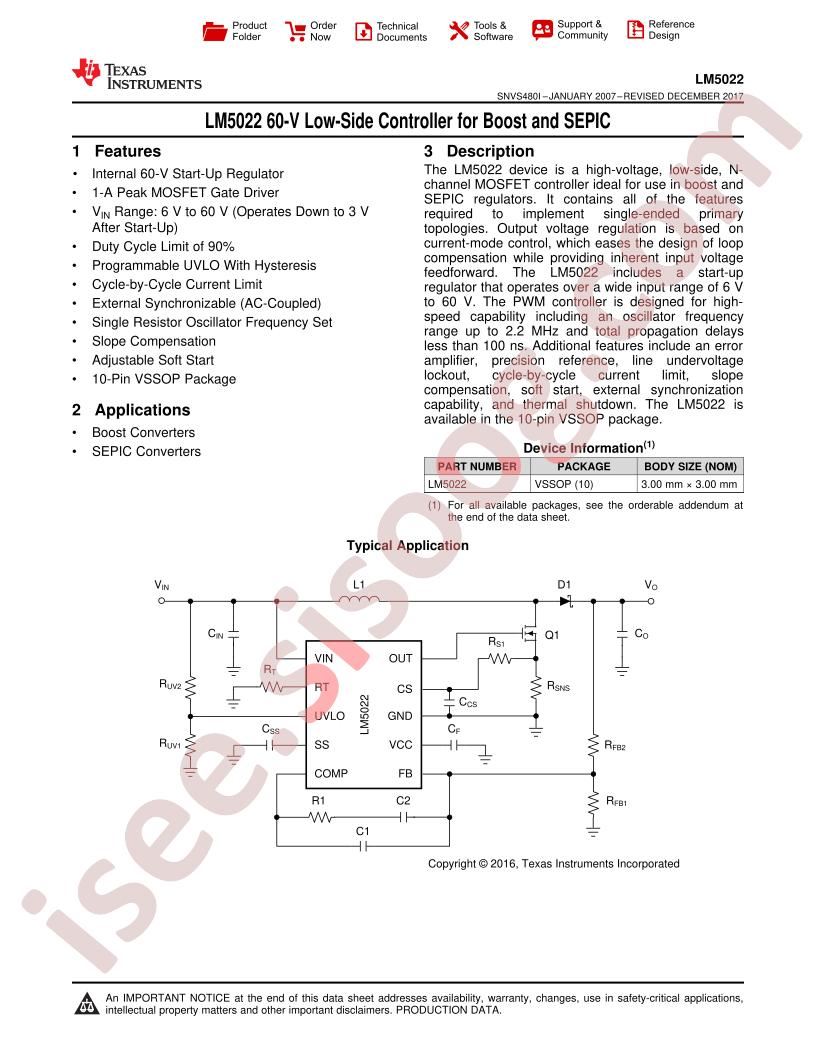

دانلود دیتاشیت LM5022 Datasheet

LM5022 Datasheet Datasheet

مشخصات

  • Topology: Boost, SEPIC
  • Number of Outputs: 1
  • Voltage - Supply (Vcc/Vdd): 6V ~ 60V
  • Base Part Number: LM5022
  • Operating Temperature: -40°C ~ 125°C (TJ)
  • Package / Case: 10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
  • Manufacturer: Texas Instruments
  • Output Configuration: Positive
  • Series: -
  • Supplier Device Package: 10-VSSOP
  • Frequency - Switching: 200kHz ~ 990kHz
  • Part Status: Not For New Designs
  • Mounting Type: Surface Mount
  • Control Features: Frequency Control, Soft Start
  • Clock Sync: Yes
  • Serial Interfaces: -
  • Function: Step-Up, Step-Up/Step-Down
  • Duty Cycle (Max): 95%
  • Packaging: Cut Tape (CT)
  • Synchronous Rectifier: No
  • Output Type: Transistor Driver
  • Output Phases: 1
