دیتاشیت ADL5380ACPZ-R7

ADL5380

مشخصات دیتاشیت

نام دیتاشیت ADL5380
حجم فایل 778.144 کیلوبایت
نوع فایل pdf
تعداد صفحات 36

دانلود دیتاشیت ADL5380

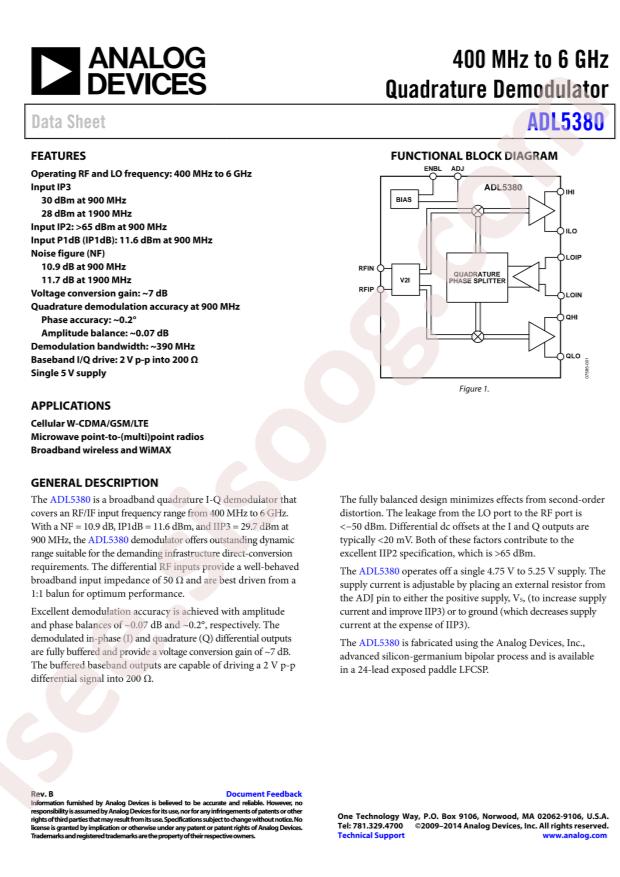

ADL5380 Datasheet

مشخصات

  • Gain: 6.9dB
  • RoHS: true
  • Category: Radio Frequency Chip/Antenna/RF Modulators / Demodulator
  • Datasheet: Analog Devices ADL5380ACPZ-R7
  • Noise Figure: 10.9dB
  • Supply Current: 145mA
  • Supply Voltage: 4.75V~5.25V
  • Frequency Range: 400MHz~6GHz
  • Operating Temperature: -40°C~+85°C
  • Package: QFN-24-EP(4x4)
  • Manufacturer: Analog Devices
  • Series: -
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • Function: Demodulator
  • LO Frequency: 400MHz ~ 6GHz
  • RF Frequency: 400MHz ~ 6GHz
  • P1dB: 11.6dBm
  • Current - Supply: 245mA
  • Voltage - Supply: 4.75V ~ 5.25V
  • Mounting Type: Surface Mount
  • Package / Case: 24-WFQFN Exposed Pad, CSP
  • Supplier Device Package: 24-LFCSP-WQ (4x4)
  • Base Part Number: ADL5380
  • detail: RF Demodulator IC 400MHz ~ 6GHz 24-WFQFN Exposed Pad, CSP
