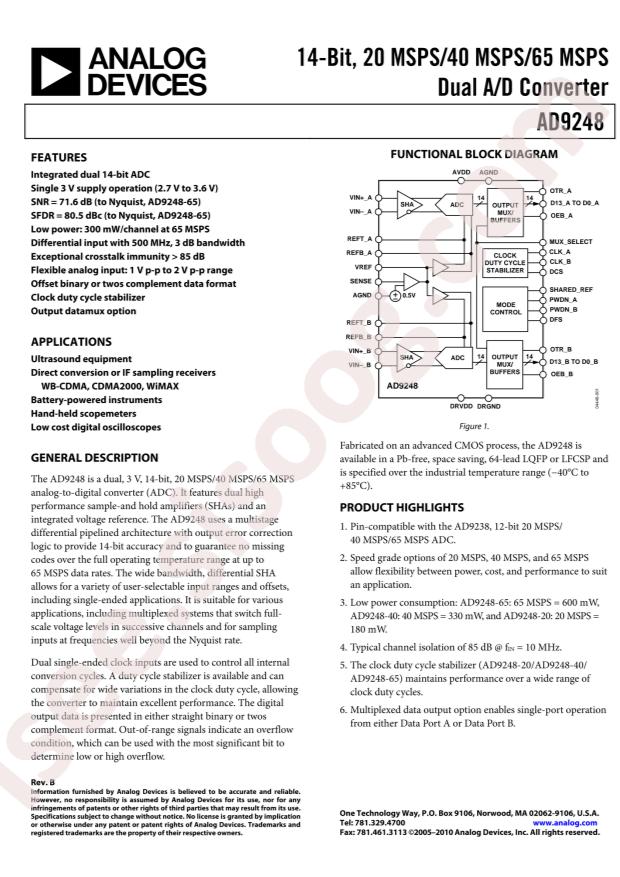

- دیتاشیت AD9248BSTZ-65
AD9248BSTZ-65 دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | AD9248BSTZ-65 |
|---|---|
| حجم فایل | 113.595 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 48 |
دانلود دیتاشیت AD9248BSTZ-65 |
دانلود دیتاشیت |
|---|
سایر مستندات
AD9248 48 pages
AD9248BSTZ-65 49 pages
مشخصات فنی
- RoHS: true
- Category: ADC/DAC/Data Conversion/Analog To Digital Converters (ADCs)
- Datasheet: Analog Devices AD9248BSTZ-65
- Interface: Parallel
- resolution: 14Bit
- Supply Voltage: 2.7V~3.6V
- differential input: Yes
- number of channels: 2
- sampling frequency: 65MHz
- Operating Temperature: -40°C~+85°C
- Package: LQFP-64(7x7)
- Manufacturer: Analog Devices
- Series: -
- Packaging: Tray
- Part Status: Active
- Number of Bits: 14
- Sampling Rate (Per Second): 65M
- Number of Inputs: 2
- Input Type: Differential, Single Ended
- Data Interface: Parallel
- Configuration: S/H-ADC
- Ratio - S/H:ADC: 1:1
- Number of A/D Converters: 1
- Architecture: Pipelined
- Reference Type: External, Internal
- Voltage - Supply, Analog: 2.7V ~ 3.6V
- Voltage - Supply, Digital: 2.25V ~ 3.6V
- Features: Simultaneous Sampling
- Package / Case: 64-LQFP
- Supplier Device Package: 64-LQFP (7x7)
- Mounting Type: Surface Mount
- Base Part Number: AD9248
- detail: 14 Bit Analog to Digital Converter 2 Input 1 Pipelined 64-LQFP (7x7)
