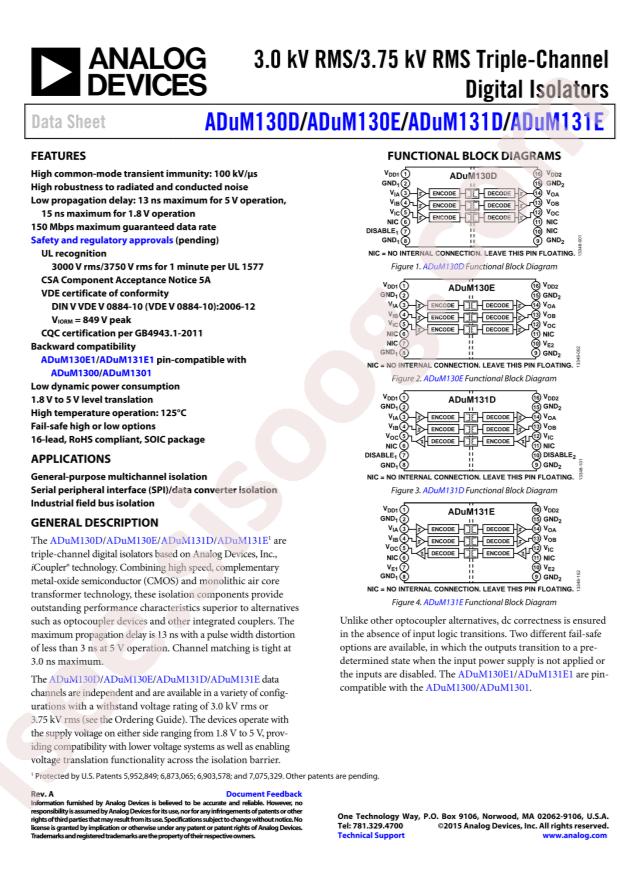

دیتاشیت ADUM130D0BRZ
مشخصات دیتاشیت
| نام دیتاشیت |
ADuM130-31D,E
|
| حجم فایل |
655.089
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
22
|
مشخصات
-
RoHS:
true
-
Category:
Communication Interface Chip/UART/485/232/Digital Isolators
-
Data Rate:
150Mbps
-
Datasheet:
Analog Devices ADUM130D0BRZ
-
Applications:
General-purpose
-
Supply Voltage:
1.7V~5.5V
-
Forward Channel:
3
-
Reverse channel:
0
-
Number of Channels:
3
-
Isolation Technology:
Magnetic isolation
-
Operating Temperature:
-40°C~+125°C
-
Voltage Isolation or Not:
Without voltage isolation
-
Package:
SOIC-16
-
Manufacturer:
Analog Devices
-
Series:
iCoupler®
-
Packaging:
Tube
-
Part Status:
Active
-
Technology:
Magnetic Coupling
-
Type:
General Purpose
-
Isolated Power:
No
-
Inputs - Side 1/Side 2:
3/0
-
Channel Type:
Unidirectional
-
Voltage - Isolation:
3000Vrms
-
Common Mode Transient Immunity (Min):
75kV/µs
-
Propagation Delay tpLH / tpHL (Max):
13ns, 13ns
-
Pulse Width Distortion (Max):
3ns
-
Rise / Fall Time (Typ):
2.5ns, 2.5ns
-
Voltage - Supply:
1.7V ~ 5.5V
-
Mounting Type:
Surface Mount
-
Package / Case:
16-SOIC (0.154", 3.90mm Width)
-
Supplier Device Package:
16-SOIC
-
Base Part Number:
ADUM130
-
detail:
General Purpose Digital Isolator 3000Vrms 3 Channel 150Mbps 75kV/µs CMTI 16-SOIC (0.154", 3.90mm Width)
