DAC8581IPWR Datasheet

DAC8581

Datasheet specifications

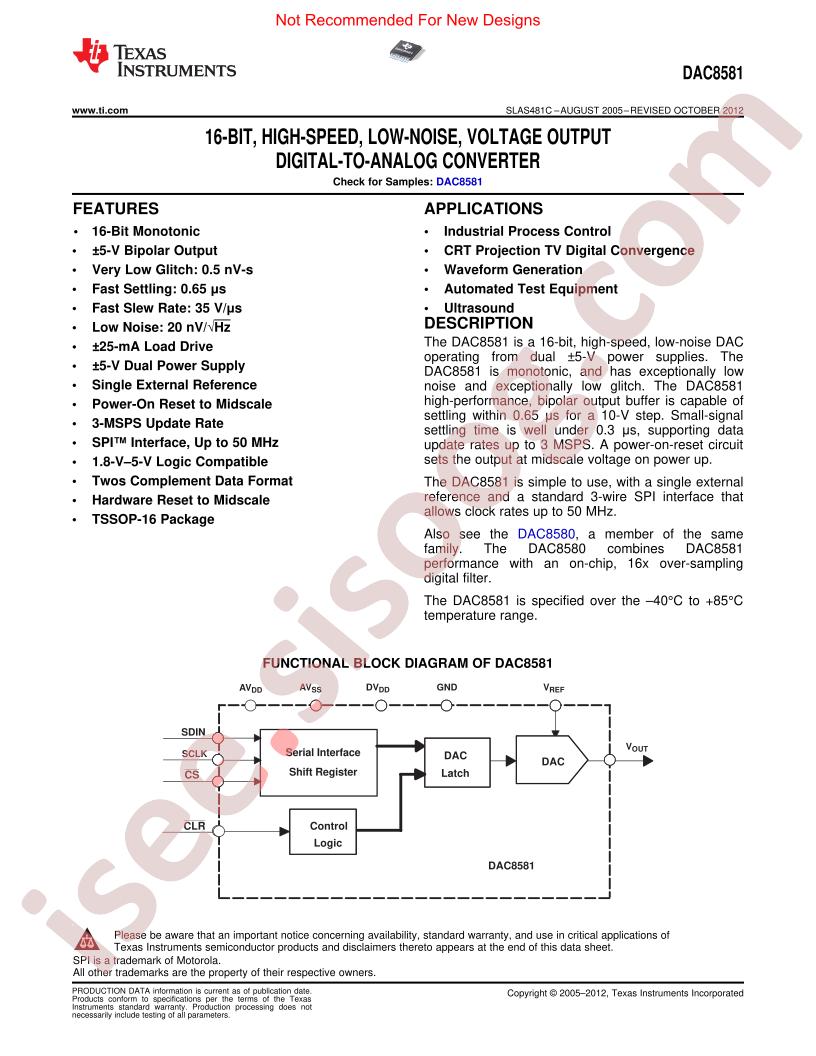

Datasheet's name DAC8581
File size 1457.133 KB
File type pdf
Number of pages 21

Download Datasheet DAC8581

Download Datasheet

Other documentations

No other documentation was found!

Technical specifications

  • Series: -
  • Voltage - Supply, Digital: 1.8V ~ 5.5V
  • Voltage - Supply, Analog: ±5V
  • INL/DNL (LSB): -, ±0.25
  • Supplier Device Package: 16-TSSOP
  • Package / Case: 16-TSSOP (0.173", 4.40mm Width)
  • Number of Bits: 16
  • Differential Output: No
  • Part Status: Not For New Designs
  • Reference Type: External
  • Settling Time: 1µs (Typ)
  • Mounting Type: Surface Mount
  • Operating Temperature: -40°C ~ 85°C
  • Architecture: String DAC
  • Manufacturer: Texas Instruments
  • Output Type: Voltage - Buffered
  • Number of D/A Converters: 1
  • Packaging: Tape & Reel (TR)
  • Base Part Number: DAC8581
  • Data Interface: SPI
  • detail: 16 Bit Digital to Analog Converter 1 16-TSSOP
