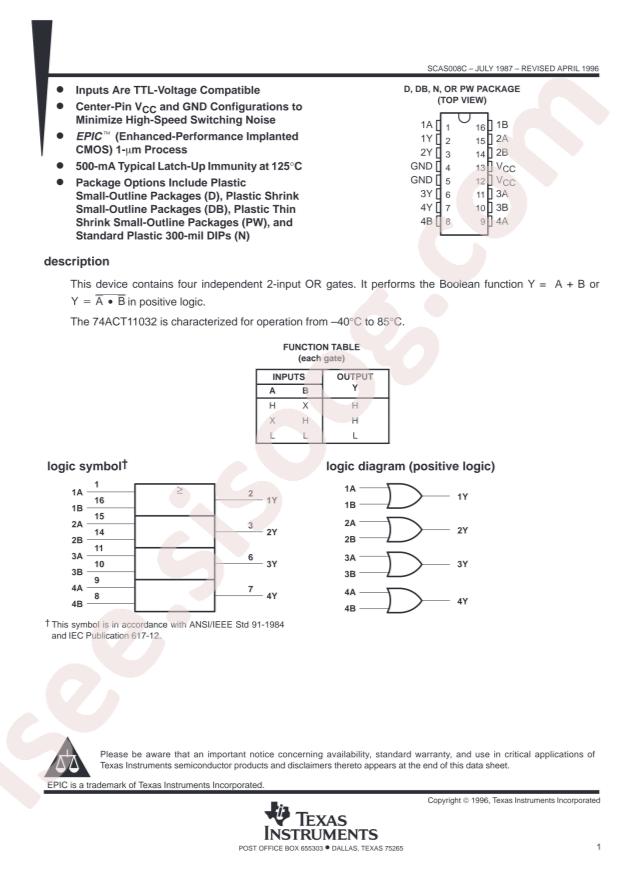

دیتاشیت 74ACT11032N
مشخصات دیتاشیت
| نام دیتاشیت |
74ACT11032
|
| حجم فایل |
459.881
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
12
|
مشخصات
-
RoHS:
true
-
Series:
74ACT
-
Category:
Logic ICs/Gates
-
Datasheet:
Texas Instruments 74ACT11032N
-
Sink Current:
24mA
-
Source Current:
24mA
-
Supply Voltage:
4.5V~5.5V
-
Logic Gate Type:
ORGate
-
Number of Channels:
4
-
Low Level Range (VIL):
0.8V
-
Operating Temperature:
-40°C~+85°C
-
High Level Range (VIH):
2V
-
Propagation Delay Time:
8.1ns@5V,50pF
-
Quiescent Current (Max):
4uA
-
Package:
PDIP-16
-
Manufacturer:
Texas Instruments
-
Current - Quiescent (Max):
4µA
-
Package / Case:
16-DIP (0.300", 7.62mm)
-
Logic Level - High:
2V
-
Number of Circuits:
4
-
Number of Inputs:
2
-
Features:
-
-
Current - Output High, Low:
24mA, 24mA
-
Mounting Type:
Through Hole
-
Supplier Device Package:
16-PDIP
-
Logic Type:
OR Gate
-
Max Propagation Delay @ V, Max CL:
8.1ns @ 5V, 50pF
-
Voltage - Supply:
4.5V ~ 5.5V
-
Packaging:
Tube
-
Base Part Number:
74ACT1
-
Part Status:
Active
-
Logic Level - Low:
0.8V
-
detail:
OR Gate IC 4 Channel 16-PDIP
