دیتاشیت SN74S85N

SN54,74(LS,S)85

مشخصات دیتاشیت

نام دیتاشیت SN54,74(LS,S)85
حجم فایل 668.36 کیلوبایت
نوع فایل pdf
تعداد صفحات 10

دانلود دیتاشیت SN54,74(LS,S)85

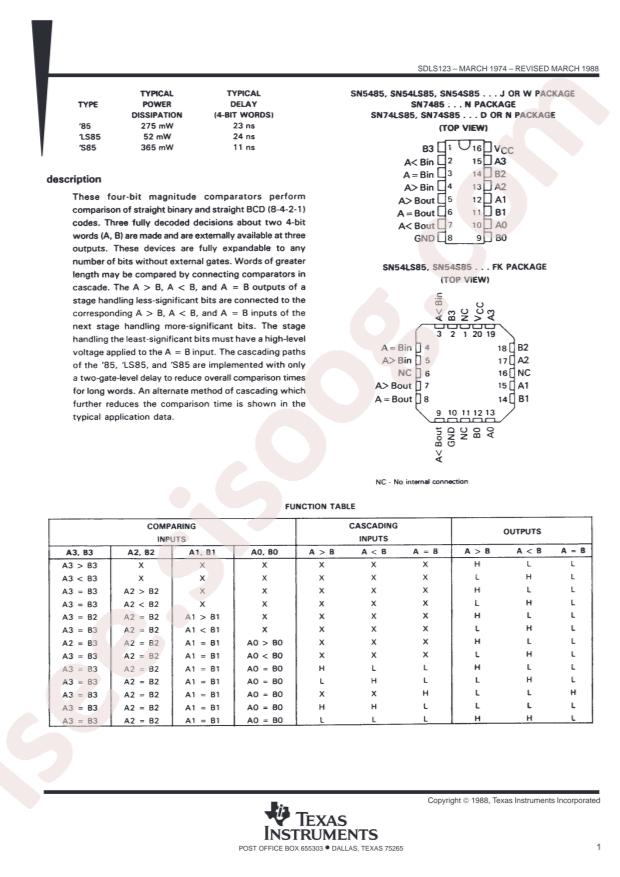

SN54,74(LS,S)85 Datasheet

مشخصات

  • RoHS: true
  • Output: Active High
  • Category: Logic ICs/Digital Comparators
  • Datasheet: Texas Instruments SN74S85N
  • Sink Current: 20mA
  • Source Current: 1mA
  • Supply Voltage: 4.75V~5.25V
  • Output Function: AB
  • Number of Channels: 4
  • Operating Temperature: 0°C~+70°C
  • Maximum Propagation Delay: 18ns@5V,15pF
  • Package: PDIP-16
  • Manufacturer: Texas Instruments
  • Series: 74S
  • Type: Magnitude Comparator
  • Package / Case: 16-DIP (0.300", 7.62mm)
  • Supplier Device Package: 16-PDIP
  • Part Status: Active
  • Current - Output High, Low: 1mA, 20mA
  • Mounting Type: Through Hole
  • Max Propagation Delay @ V, Max CL: 18ns @ 5V, 15pF
  • Voltage - Supply: 4.75V ~ 5.25V
  • Packaging: Tube
  • Base Part Number: SN74S8
  • Number of Bits: 4
  • detail: Magnitude Comparator Bit Active High Output AB 16-PDIP
