دیتاشیت SN74AS138N
مشخصات دیتاشیت
| نام دیتاشیت | SN54/74(ALS,AS)138(A) |
|---|---|
| حجم فایل | 1108.33 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 20 |
دانلود دیتاشیت SN54/74(ALS,AS)138(A) |

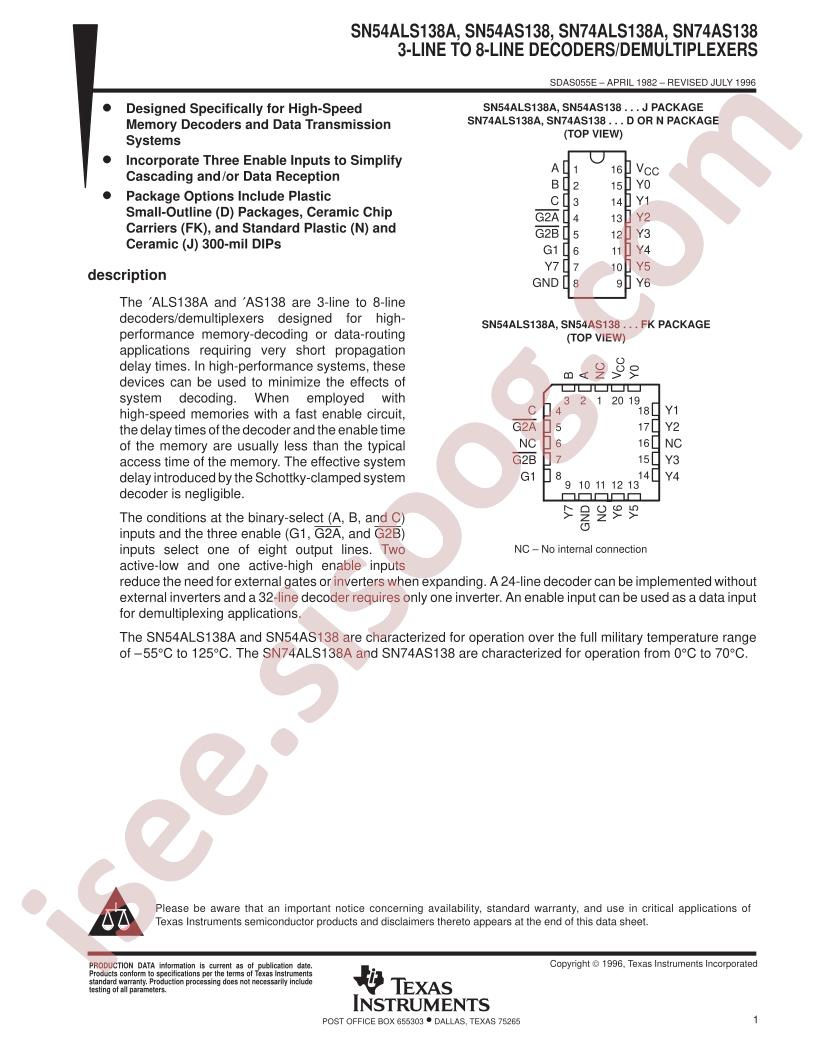

SN54/74(ALS,AS)138(A) Datasheet |
|---|
مشخصات
- Series: 74AS
- Type: Decoder/Demultiplexer
- Package / Case: 16-DIP (0.300", 7.62mm)
- Supplier Device Package: 16-PDIP
- Voltage Supply Source: Single Supply
- Circuit: 1 x 3:8
- Part Status: Active
- Current - Output High, Low: 400µA, 8mA
- Mounting Type: Through Hole
- Operating Temperature: 0°C ~ 70°C
- Independent Circuits: 1
- Manufacturer: Texas Instruments
- Voltage - Supply: 4.5V ~ 5.5V
- Packaging: Tube
- Base Part Number: SN74AS1
