دیتاشیت OPA734AID
مشخصات دیتاشیت
| نام دیتاشیت | OPA734-35, OPA2734-35 |
|---|---|
| حجم فایل | 1807.718 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 31 |
دانلود دیتاشیت OPA734-35, OPA2734-35 |

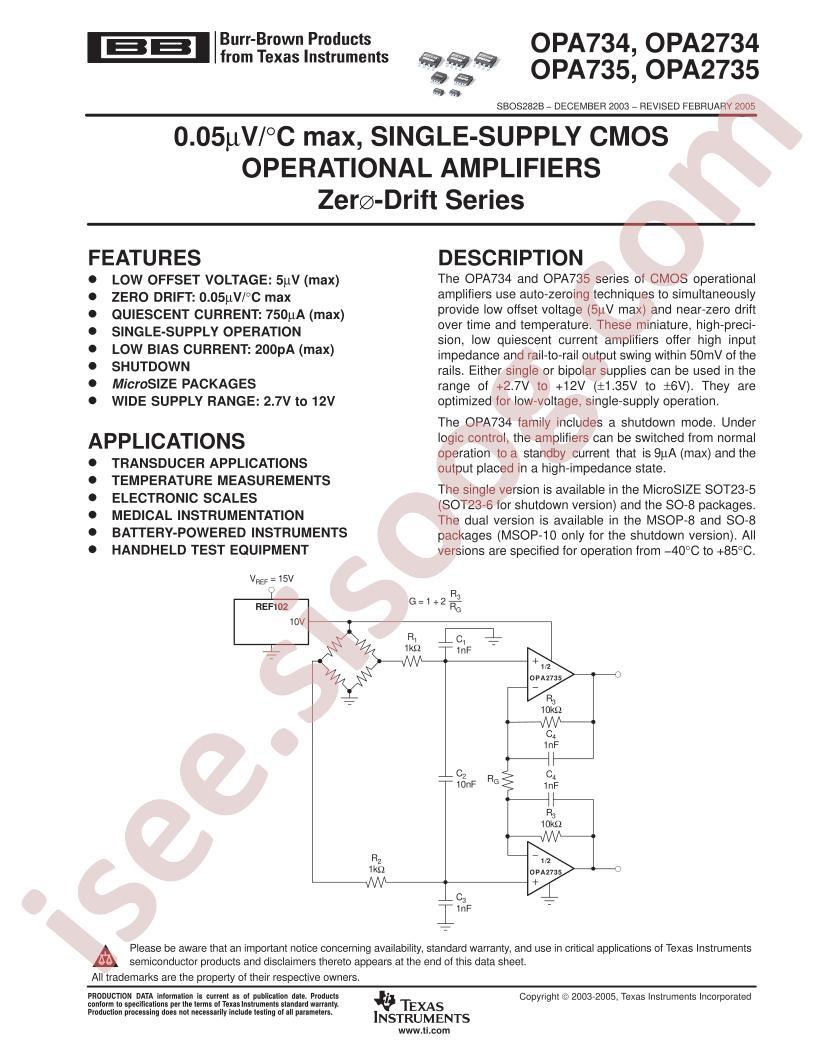

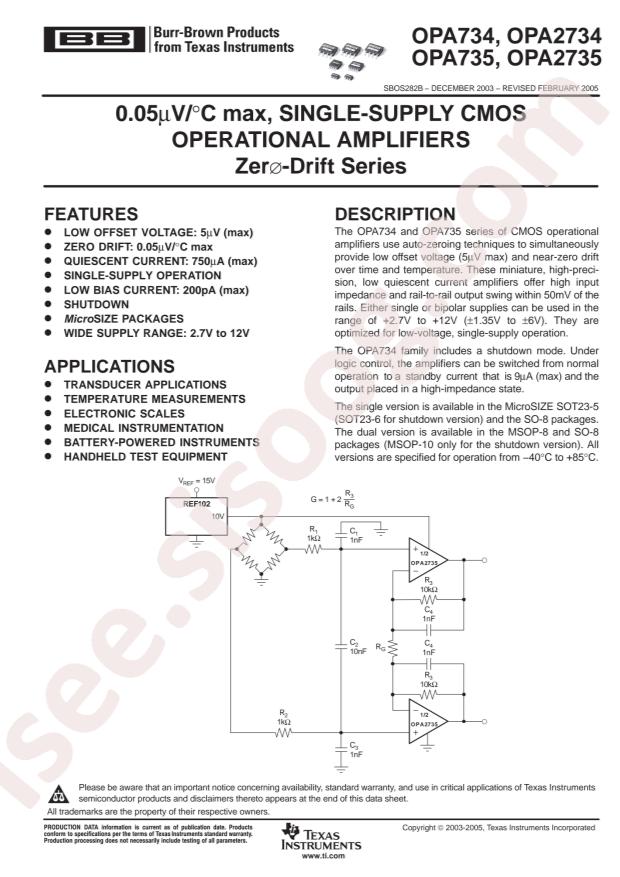

OPA734-35, OPA2734-35 Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Operational Amplifier/Comparator/Precision OpAmps
- Datasheet: Texas Instruments OPA734AID
- Rail to Rail: 轨到轨
- Number of Circuits: 1
- -3db Bandwidth(G=1): -
- Operating Temperature: -40°C~+85°C
- Current - Input Bias(Ib): 100pA
- Gain Bandwidth Product(GBP): 1.6MHz
- Voltage - Input Offset(Vos): 1uV
- Package: SOP-8
- Manufacturer: Texas Instruments
- Series: -
- Package / Case: 8-SOIC (0.154", 3.90mm Width)
- Current - Supply: 600µA
- Voltage - Input Offset: 1µV
- Mounting Type: Surface Mount
- Part Status: Active
- Slew Rate: 1.5V/µs
- Voltage - Supply, Single/Dual (±): 2.7V ~ 12V, ±1.35V ~ 6V
- Gain Bandwidth Product: 1.6MHz
- Amplifier Type: Zero-Drift
- Current - Output / Channel: 20mA
- Packaging: Tube
- Base Part Number: OPA734
- Current - Input Bias: 100pA
- Output Type: Rail-to-Rail
- Supplier Device Package: 8-SOIC
