دیتاشیت SN74S244N

مشخصات دیتاشیت

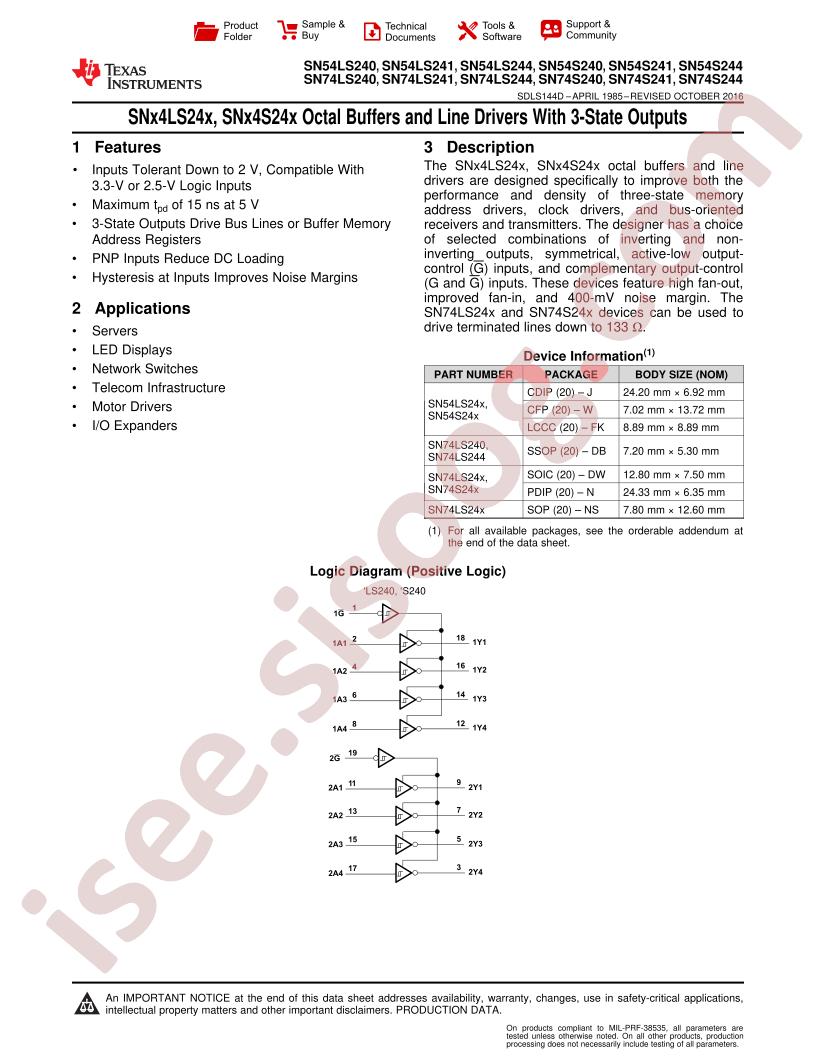

دانلود دیتاشیت SN54/74(LS,S)240/41/44	SN54/74(LS,S)240/41/44 Datasheet

RoHS: true
Category: Logic ICs/Buffer/Driver/Transceiver
Datasheet: Texas Instruments SN74S244N
output type: Tri-State
Logic Family: 74S
Sink Current: 64mA
Source Current: 15mA
Supply Voltage: 4.75V~5.25V
Number of Elements: 2
Operating Temperature: 0°C~+70°C
Number of Bits per Element: 4
Package: PDIP-20
Manufacturer: Texas Instruments
Series: 74S
Package / Case: 20-DIP (0.300", 7.62mm)
Supplier Device Package: 20-PDIP
Part Status: Active
Current - Output High, Low: 15mA, 64mA
Mounting Type: Through Hole
Base Part Number: SN74S2
Voltage - Supply: 4.75V ~ 5.25V
Packaging: Tube
Input Type: -
Logic Type: Buffer, Non-Inverting
detail: Buffer, Non-Inverting 2 Element 4 Bit per Element 3-State Output 20-PDIP
