دیتاشیت SN74ALS569AN
مشخصات دیتاشیت
| نام دیتاشیت | SN54ALS569A, SN74ALS568A-69A |
|---|---|
| حجم فایل | 1118.514 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 22 |
دانلود دیتاشیت SN54ALS569A, SN74ALS568A-69A |

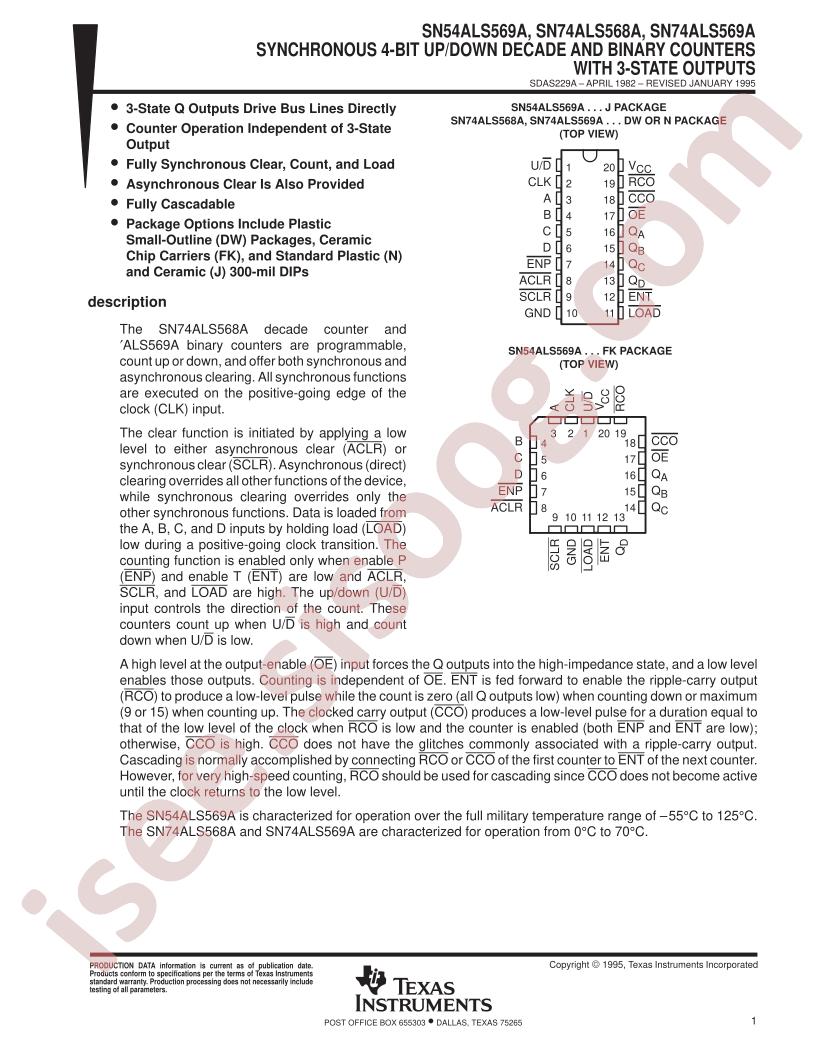

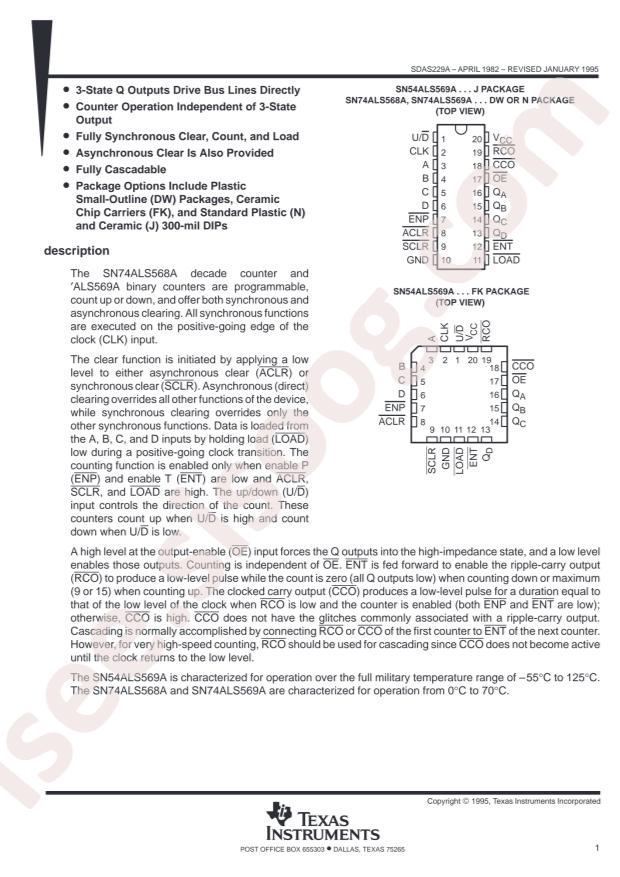

SN54ALS569A, SN74ALS568A-69A Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Logic ICs/Counters / Dividers
- Datasheet: Texas Instruments SN74ALS569AN
- Direction: 向上计数器;向下计数器
- Count Rate: 30MHz
- Logic Type: Binary Counter
- Reset Style: Asynchronous;Synchronous
- Timing mode: Synchronous
- Trigger Type: Positive Edge
- Supply Voltage: 4.5V~5.5V
- Number of Elements: 1
- Operating Temperature: 0°C~+70°C
- Number of Bits per Element: 4
- Package: PDIP-20
- Manufacturer: Texas Instruments
- Series: 74ALS
- Package / Case: 20-DIP (0.300", 7.62mm)
- Packaging: Tube
- Supplier Device Package: 20-PDIP
- Mounting Type: Through Hole
- Part Status: Active
- Timing: Synchronous
- Voltage - Supply: 4.5V ~ 5.5V
- Reset: Asynchronous/Synchronous
- Base Part Number: SN74ALS5
- detail: Counter IC Binary Counter 1 Element 4 Bit Positive Edge 20-PDIP
