دیتاشیت UCC38084P
مشخصات دیتاشیت
| نام دیتاشیت | UCC28083-86, UCC38083-86 |
|---|---|
| حجم فایل | 1585.133 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 28 |
دانلود دیتاشیت UCC28083-86, UCC38083-86 |

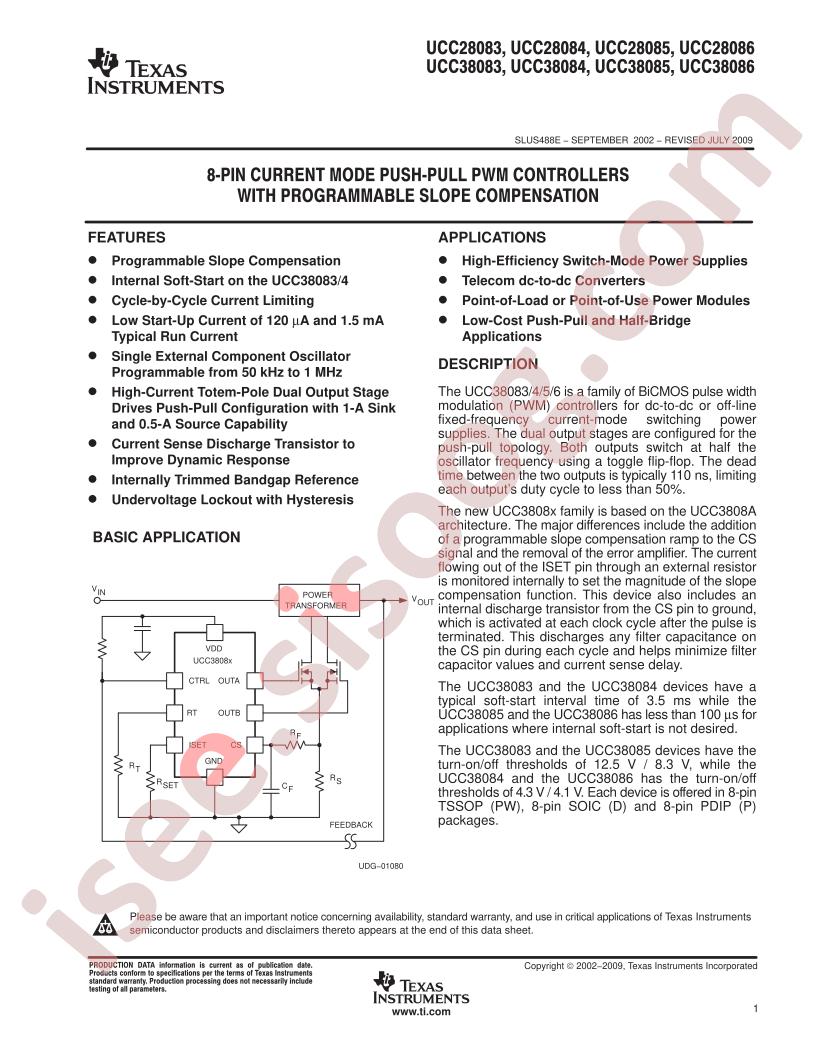

UCC28083-86, UCC38083-86 Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Power Supply Chip/DC-DC Controllers
- Function: boost converterType;Step-down type;Buck-boost type
- Topology: Step-down;Boost;Half-Bridge;Push-pull
- Datasheet: Texas Instruments UCC38084P
- Input Voltage: 4.1V~15V
- Duty Cycle (Max): 49%
- Number of Outputs: 2
- Switching Frequency: 200kHz
- Operating Temperature: 0°C~+70°C@(TA)
- Synchronous Rectification: Yes
- Package: PDIP-8
- Manufacturer: Texas Instruments
- Voltage - Supply (Vcc/Vdd): 4.1V ~ 15V
- Base Part Number: UCC380
- Package / Case: 8-DIP (0.300", 7.62mm)
- Output Configuration: Positive
- Series: -
- Supplier Device Package: 8-PDIP
- Frequency - Switching: 200kHz
- Part Status: Active
- Mounting Type: Through Hole
- Control Features: Current Limit, Frequency Control
- Clock Sync: No
- Serial Interfaces: -
- Packaging: Tube
- Synchronous Rectifier: Yes
- Output Type: Transistor Driver
- Output Phases: 1
- detail: Buck, Boost, Half-Bridge, Push-Pull Regulator Positive Output Step-Up, Step-Down, Step-Up/Step-Down DC-DC Controller IC 8-PDIP
