AD9609BCPZ-80 数据手册
其他文档
AD9609 32 pages
技术规格
- RoHS: true
- Category: ADC/DAC/Data Conversion/Analog To Digital Converters (ADCs)

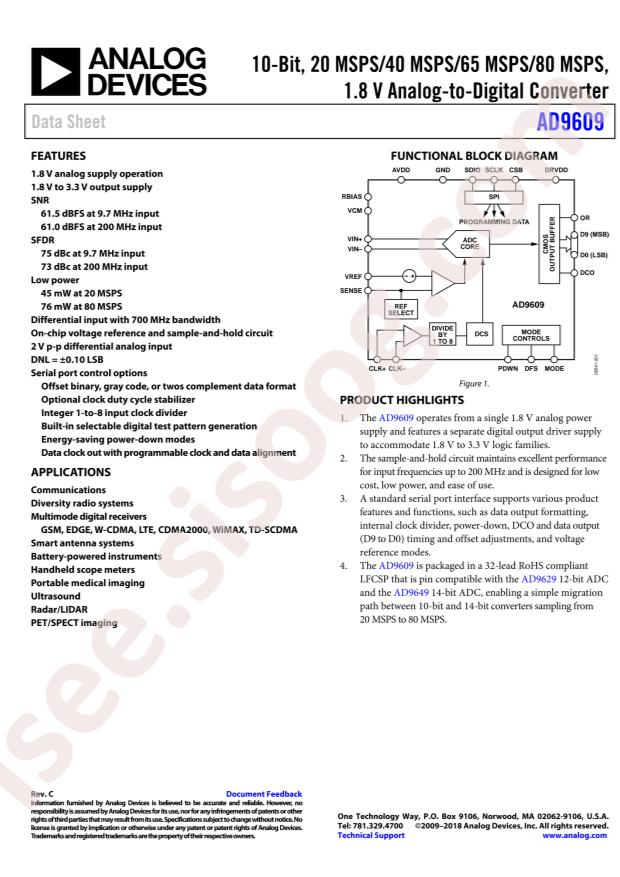

- Datasheet: Analog Devices AD9609BCPZ-80
- Interface: Parallel
- resolution: 10Bit
- Supply Voltage: 1.7V~1.9V
- differential input: Yes
- number of channels: 1
- sampling frequency: 80MHz
- Operating Temperature: -40°C~+85°C

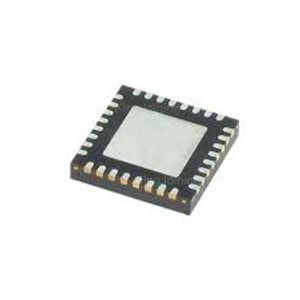

- Package: LFCSP-32
- Manufacturer: Analog Devices
- Series: -
- Packaging: Tray
- Part Status: Active
- Number of Bits: 10
- Sampling Rate (Per Second): 80M
- Number of Inputs: 1
- Input Type: Differential, Single Ended
- Data Interface: Parallel
- Configuration: S/H-ADC
- Ratio - S/H:ADC: 1:1
- Number of A/D Converters: 1
- Architecture: Pipelined
- Reference Type: External, Internal
- Voltage - Supply, Analog: 1.7V ~ 1.9V
- Voltage - Supply, Digital: 1.7V ~ 1.9V
- Features: -
- Package / Case: 32-VFQFN Exposed Pad, CSP
- Supplier Device Package: 32-LFCSP-VQ (5x5)
- Mounting Type: Surface Mount
- Base Part Number: AD9609
- detail: 10 Bit Analog to Digital Converter 1 Input 1 Pipelined 32-LFCSP-VQ (5x5)
