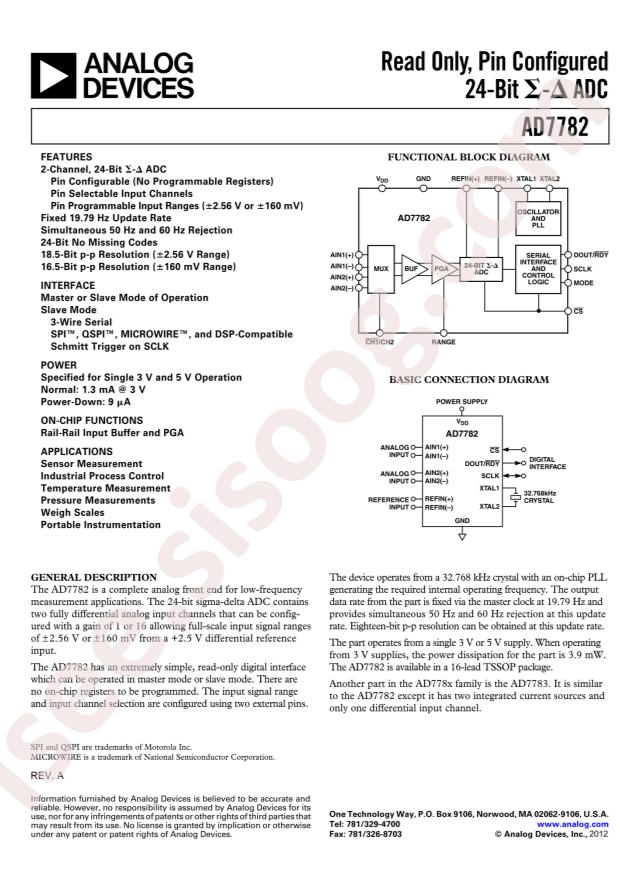

دیتاشیت AD7782BRUZ

AD7782

مشخصات دیتاشیت

نام دیتاشیت AD7782
حجم فایل 897.623 کیلوبایت
نوع فایل pdf
تعداد صفحات 12

دانلود دیتاشیت AD7782

AD7782 Datasheet

مشخصات

  • RoHS: true
  • Category: ADC/DAC/Data Conversion/Analog To Digital Converters (ADCs)
  • Datasheet: Analog Devices AD7782BRUZ
  • Interface: SPI;DSP
  • resolution: 24Bit
  • Supply Voltage: 2.7V~3.6V;5V
  • differential input: Yes
  • number of channels: 2
  • sampling frequency: 19.79Hz
  • Operating Temperature: -40°C~+85°C
  • Package: TSSOP-16
  • Manufacturer: Analog Devices
  • Series: -
  • Packaging: Tube
  • Part Status: Active
  • Number of Bits: 24
  • Sampling Rate (Per Second): 19.79
  • Number of Inputs: 2
  • Input Type: Differential
  • Data Interface: SPI, DSP
  • Configuration: MUX-PGA-ADC
  • Ratio - S/H:ADC: -
  • Number of A/D Converters: 1
  • Architecture: Sigma-Delta
  • Reference Type: External
  • Voltage - Supply, Analog: 2.7V ~ 3.6V, 5V
  • Voltage - Supply, Digital: 2.7V ~ 3.6V, 5V
  • Features: PGA
  • Package / Case: 16-TSSOP (0.173", 4.40mm Width)
  • Supplier Device Package: 16-TSSOP
  • Mounting Type: Surface Mount
  • Base Part Number: AD7782
  • detail: 24 Bit Analog to Digital Converter 2 Input 1 Sigma-Delta 16-TSSOP
