دیتاشیت DAC8871SPW

DAC8871

مشخصات دیتاشیت

نام دیتاشیت DAC8871
حجم فایل 1274.117 کیلوبایت
نوع فایل pdf
تعداد صفحات 24

دانلود دیتاشیت DAC8871

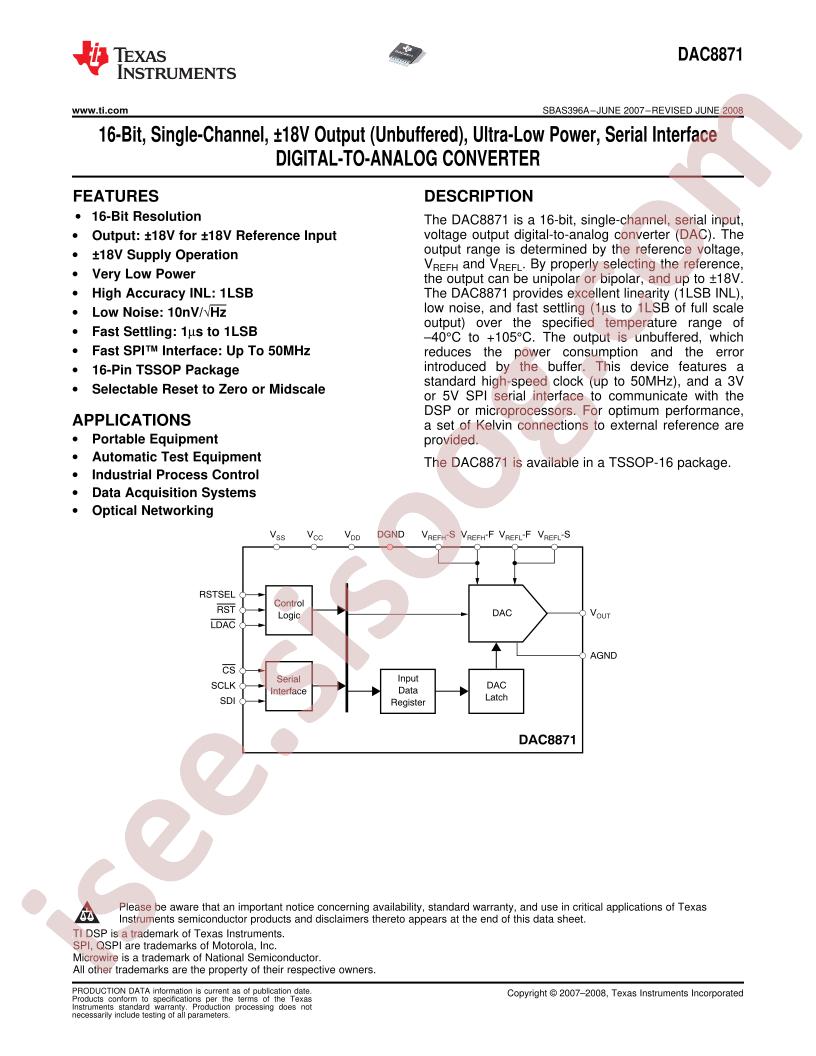

DAC8871 Datasheet

مشخصات

  • RoHS: true
  • Category: ADC/DAC/Data Conversion/Digital To Analog Converters (DACs)
  • Datasheet: Texas Instruments DAC8871SPW
  • Interface: SPI
  • Resolution: 16Bit
  • Output Type: Voltage-非缓冲
  • Settling Time: 1us
  • Supply Voltage: 2.7V~5.5V
  • Integral nonlinearity: ±1LSB;±0.25LSB
  • Operating Temperature: -40°C~+105°C
  • Package: TSSOP-16
  • Manufacturer: Texas Instruments
  • Series: -
  • Voltage - Supply, Digital: 2.7V ~ 5.5V
  • Voltage - Supply, Analog: ±13.5V ~ 19.8V
  • INL/DNL (LSB): ±1, ±0.25
  • Supplier Device Package: 16-TSSOP
  • Package / Case: 16-TSSOP (0.173", 4.40mm Width)
  • Number of Bits: 16
  • Differential Output: No
  • Part Status: Active
  • Reference Type: External
  • Mounting Type: Surface Mount
  • Architecture: R-2R
  • Number of D/A Converters: 1
  • Packaging: Tube
  • Base Part Number: DAC8871
  • Data Interface: SPI
