دیتاشیت ADG508FBRN

ADG508F,509F

مشخصات دیتاشیت

نام دیتاشیت ADG508F,509F
حجم فایل 288.738 کیلوبایت
نوع فایل pdf
تعداد صفحات 20

دانلود دیتاشیت ADG508F,509F

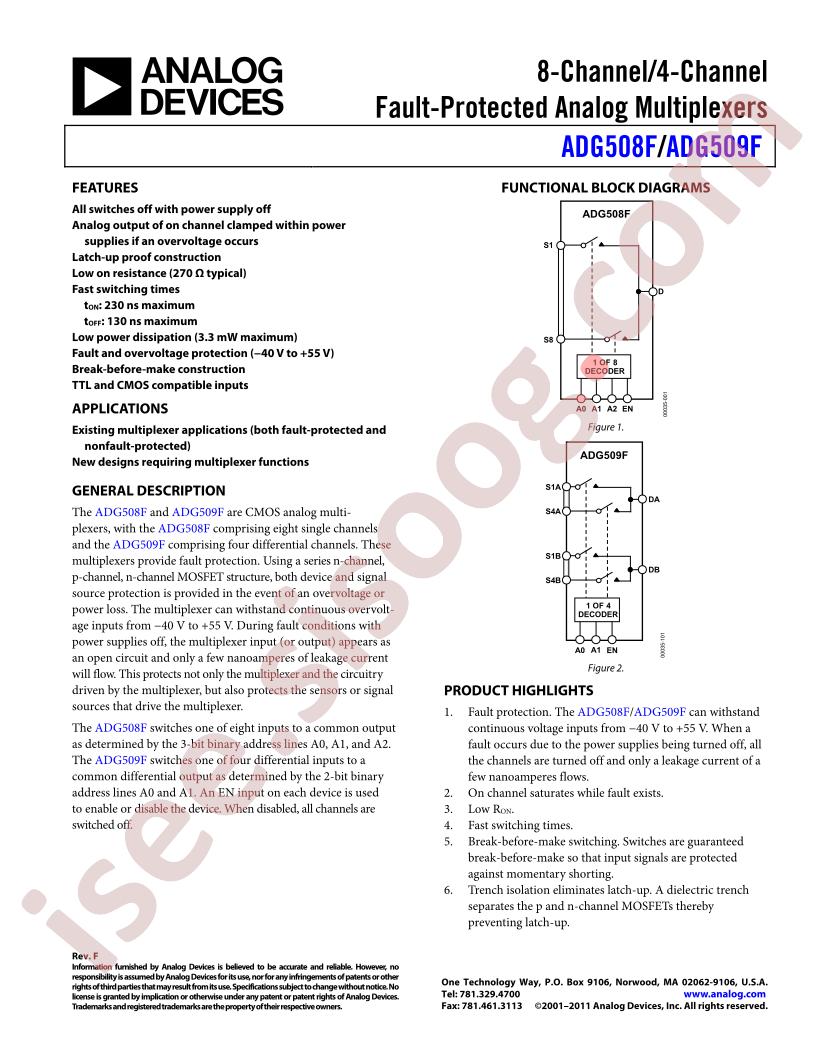

ADG508F,509F Datasheet

مشخصات

  • Manufacturer: Analog Devices Inc.
  • Series: -
  • Packaging: Tube
  • Part Status: Obsolete
  • Switch Circuit: -
  • Multiplexer/Demultiplexer Circuit: 8:1
  • Number of Circuits: 1
  • On-State Resistance (Max): 270Ohm (Typ)
  • Channel-to-Channel Matching (ΔRon): 8.1Ohm
  • Voltage - Supply, Single (V+): 15V
  • Voltage - Supply, Dual (V±): ±15V
  • Switch Time (Ton, Toff) (Max): 230ns, 130ns
  • -3db Bandwidth: -
  • Charge Injection: 15pC
  • Channel Capacitance (CS(off), CD(off)): 3pF, 22pF
  • Current - Leakage (IS(off)) (Max): 1nA
  • Crosstalk: -
  • Operating Temperature: -40°C ~ 85°C (TA)
  • Mounting Type: Surface Mount
  • Package / Case: 16-SOIC (0.154", 3.90mm Width)
  • Supplier Device Package: 16-SOIC
  • Base Part Number: ADG508
  • detail: 1 Circuit IC Switch 8:1 270Ohm (Typ) 16-SOIC
