دیتاشیت AD96687BR

AD96685,87

مشخصات دیتاشیت

نام دیتاشیت AD96685,87
حجم فایل 102.043 کیلوبایت
نوع فایل pdf
تعداد صفحات 8

دانلود دیتاشیت AD96685,87

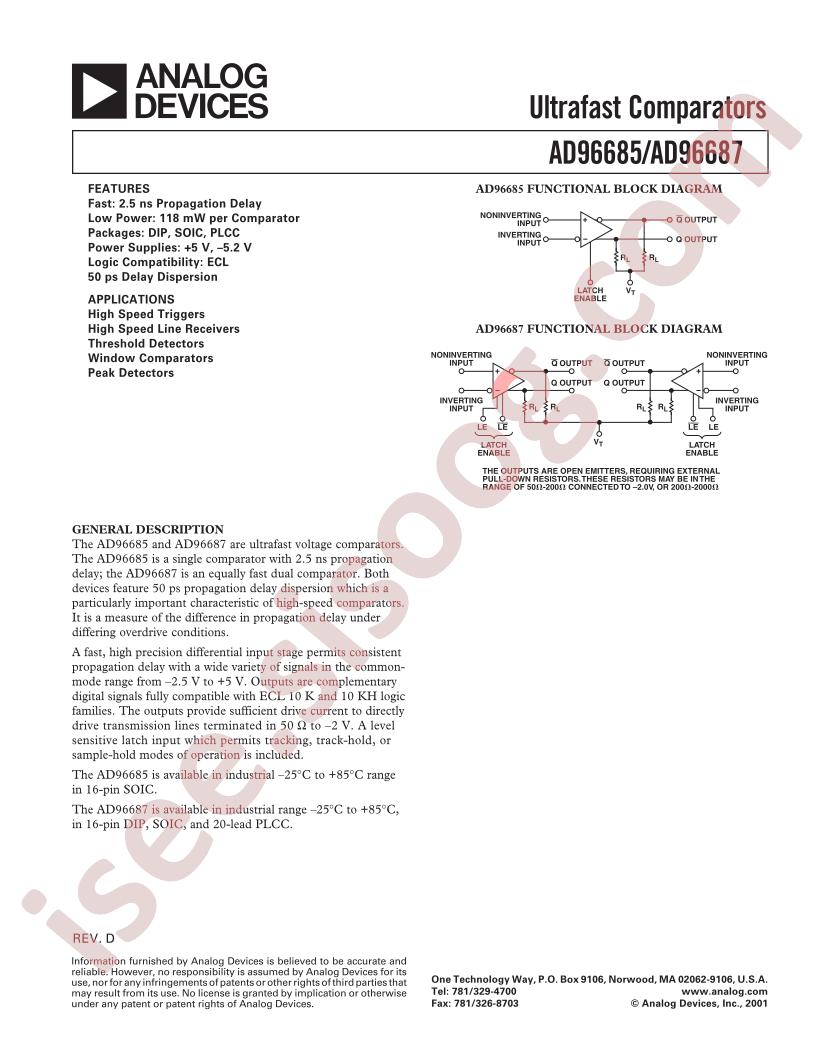

AD96685,87 Datasheet

مشخصات

  • Manufacturer: Analog Devices Inc.
  • Series: -
  • Packaging: Tube
  • Part Status: Obsolete
  • Type: with Latch
  • Number of Elements: 2
  • Output Type: Complementary, ECL, Open-Emitter
  • Voltage - Supply, Single/Dual (±): -
  • Voltage - Input Offset (Max): 2mV @ -5.2V, 5V
  • Current - Input Bias (Max): 10µA @ -5.2V,5V
  • Current - Output (Typ): 30mA
  • Current - Quiescent (Max): 18mA,36mA
  • CMRR, PSRR (Typ): 90dB CMRR, 70dB PSRR
  • Propagation Delay (Max): 3.5ns
  • Hysteresis: -
  • Operating Temperature: -25°C ~ 85°C
  • Package / Case: 16-SOIC (0.154", 3.90mm Width)
  • Mounting Type: Surface Mount
  • Supplier Device Package: 16-SOIC
  • Base Part Number: AD96687
  • detail: Comparator with Latch Complementary, ECL, Open-Emitter 16-SOIC
