دیتاشیت NCP1337DR2G

مشخصات دیتاشیت

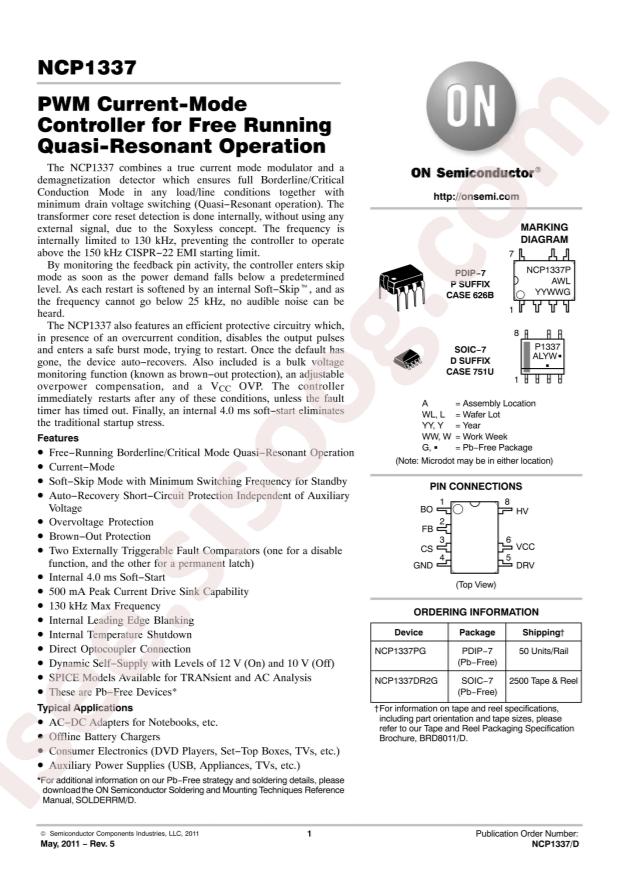

دانلود دیتاشیت NCP1337	NCP1337 Datasheet

RoHS: true
Category: Power Supply Chip/AC-DC Controllers & Regulators
Topology: Flyback
Datasheet: onsemi NCP1337DR2G
Supply Voltage: 10V~20V
Output Isolation: Isolation
Switching Frequency: 130kHz
Operating Temperature: -40°C~+150°C@(Tj)
Package: SOP-7
Manufacturer: onsemi
Series: -
Packaging: Cut Tape (CT)
Part Status: Not For New Designs
Internal Switch(s): No
Voltage - Breakdown: -
Voltage - Start Up: 12V
Voltage - Supply (Vcc/Vdd): 10V ~ 20V
Duty Cycle: -
Frequency - Switching: 130kHz
Fault Protection: Current Limiting, Over Temperature, Over Voltage, Short Circuit
Control Features: -
Package / Case: 8-SOIC (0.154", 3.90mm Width), 7 Leads
Supplier Device Package: 7-SOIC
Mounting Type: Surface Mount
Base Part Number: NCP1337
