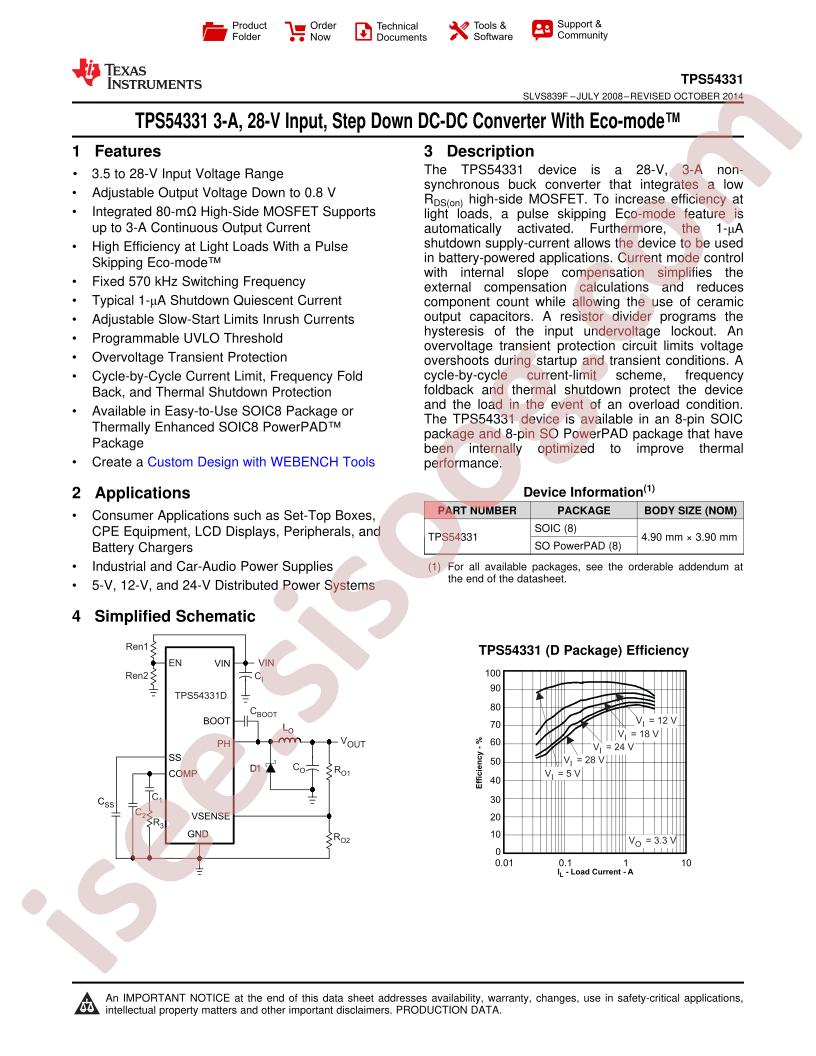

دیتاشیت TPS54331DR
مشخصات دیتاشیت
| نام دیتاشیت |
TPS54331
|
| حجم فایل |
2259.223
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
39
|
مشخصات
-
RoHS:
true
-
Category:
Power Supply Chip/DC-DC Converters
-
Function:
Step-down type
-
Topology:
Step-down
-
Datasheet:
Texas Instruments TPS54331DR
-
Output Type:
Adjustable
-
Input Voltage:
3.5V~28V
-
Output Voltage:
0.8V~25V
-
Number of Outputs:
1
-
Switching Frequency:
570kHz
-
Output Current (Max):
3A
-
Operating Temperature:
-40°C~+150°C@(TJ)
-
Synchronous Rectification:
NO
-
Package:
SOP-8
-
Manufacturer:
Texas Instruments
-
Voltage - Output (Min/Fixed):
0.8V
-
Voltage - Input (Max):
28V
-
Voltage - Output (Max):
25V
-
Voltage - Input (Min):
3.5V
-
Mounting Type:
Surface Mount
-
Synchronous Rectifier:
No
-
Packaging:
Cut Tape (CT)
-
Package / Case:
8-SOIC (0.154", 3.90mm Width)
-
Part Status:
Active
-
Series:
Eco-Mode™
-
Current - Output:
3A
-
Base Part Number:
TPS543
-
Output Configuration:
Positive
-
Frequency - Switching:
570kHz
-
Supplier Device Package:
8-SOIC
-
detail:
Buck Switching Regulator IC Positive Adjustable 0.8V 1 Output 3A 8-SOIC (0.154", 3.90mm Width)
