دیتاشیت SN74LS03N
مشخصات دیتاشیت
| نام دیتاشیت | SN54,74(LS,S)03 |
|---|---|
| حجم فایل | 678.511 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 8 |
دانلود دیتاشیت SN54,74(LS,S)03 |

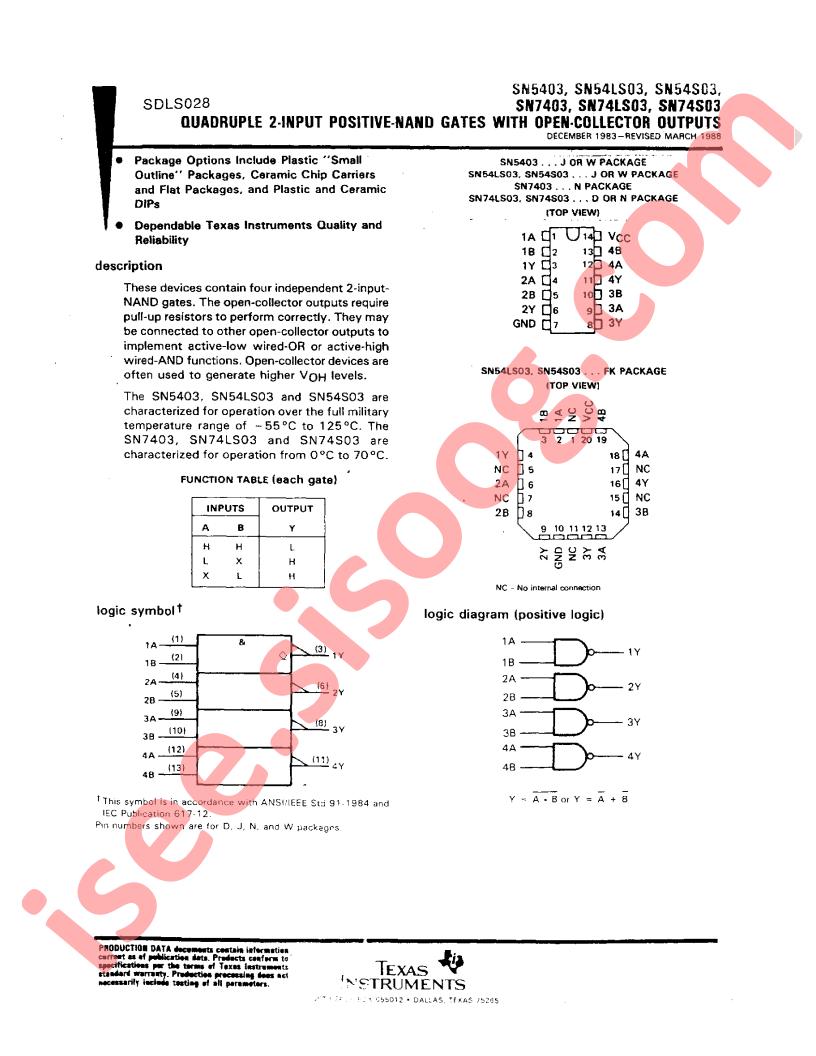

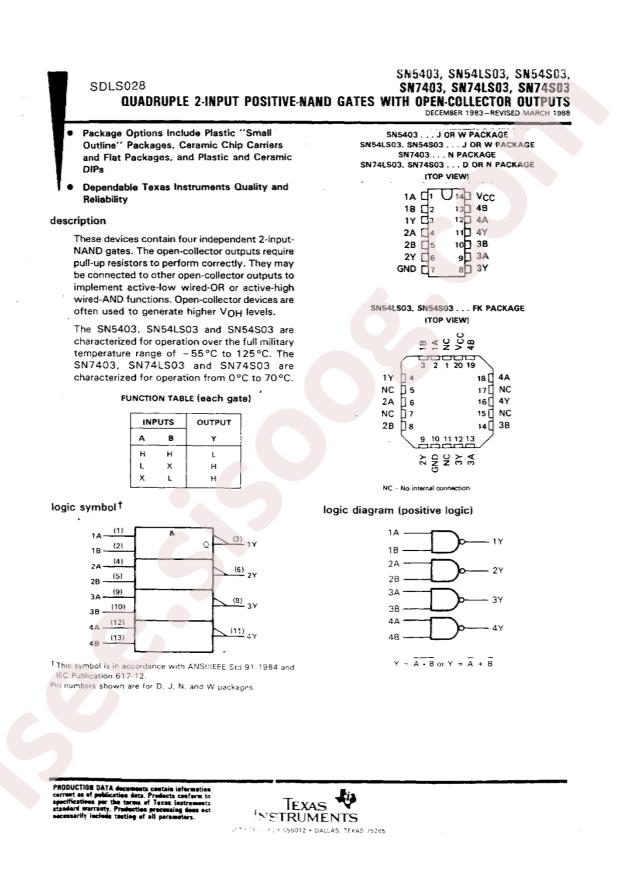

SN54,74(LS,S)03 Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Logic ICs/Gates
- Datasheet: Texas Instruments SN74LS03N
- Package: PDIP-14
- Manufacturer: Texas Instruments
- Logic Level - High: 2V
- Base Part Number: SN74LS03
- Supplier Device Package: 14-PDIP
- Logic Level - Low: 0.8V
- Package / Case: 14-DIP (0.300", 7.62mm)
- Current - Output High, Low: 250µA, 16mA
- Features: Open Collector
- Mounting Type: Through Hole
- Packaging: Tube
- Voltage - Supply: 4.75V ~ 5.25V
- Number of Circuits: 4
- Series: 74LS
- Max Propagation Delay @ V, Max CL: 32ns @ 5V, 15pF
- Number of Inputs: 2
- Operating Temperature: 0°C ~ 70°C (TA)
- Part Status: Active
- Logic Type: NAND Gate
- detail: NAND Gate IC 4 Channel Open Collector 14-PDIP
