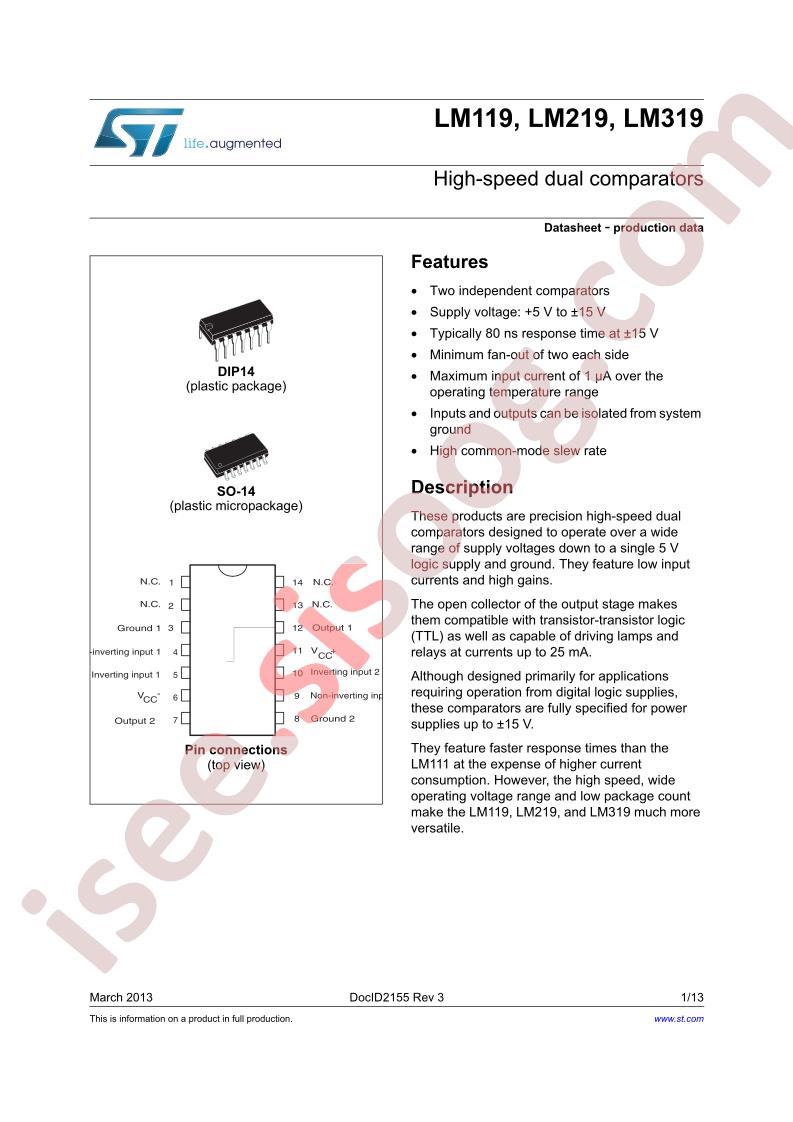

- Datasheet LM119,219,319
LM319N Datasheet
Datasheet specifications
| Datasheet's name | LM119,219,319 |
|---|---|
| File size | 995.822 KB |
| File type | |
| Number of pages | 13 |
Download Datasheet LM119,219,319 |
Download Datasheet |
|---|
Other documentations
No other documentation was found!
Technical specifications
- Manufacturer: STMicroelectronics
- Series: -
- Packaging: Tube
- Part Status: Obsolete
- Type: General Purpose
- Number of Elements: 2
- Output Type: Open-Collector, Open-Emitter, TTL
- Voltage - Supply, Single/Dual (±): 5V ~ 30V, ±2.5V ~ 15V
- Voltage - Input Offset (Max): 8mV @ ±15V
- Current - Input Bias (Max): 1µA @ ±15V
- Current - Output (Typ): -
- Current - Quiescent (Max): 12.5mA
- CMRR, PSRR (Typ): -
- Propagation Delay (Max): -
- Hysteresis: -
- Operating Temperature: 0°C ~ 70°C
- Package / Case: 14-DIP (0.300", 7.62mm)
- Mounting Type: Through Hole
- Supplier Device Package: 14-DIP
- Base Part Number: LM319
- detail: Comparator General Purpose Open-Collector, Open-Emitter, TTL 14-DIP
