دیتاشیت FDN337N

FDN337N

مشخصات دیتاشیت

نام دیتاشیت FDN337N
حجم فایل 345.002 کیلوبایت
نوع فایل pdf
تعداد صفحات 5

دانلود دیتاشیت FDN337N

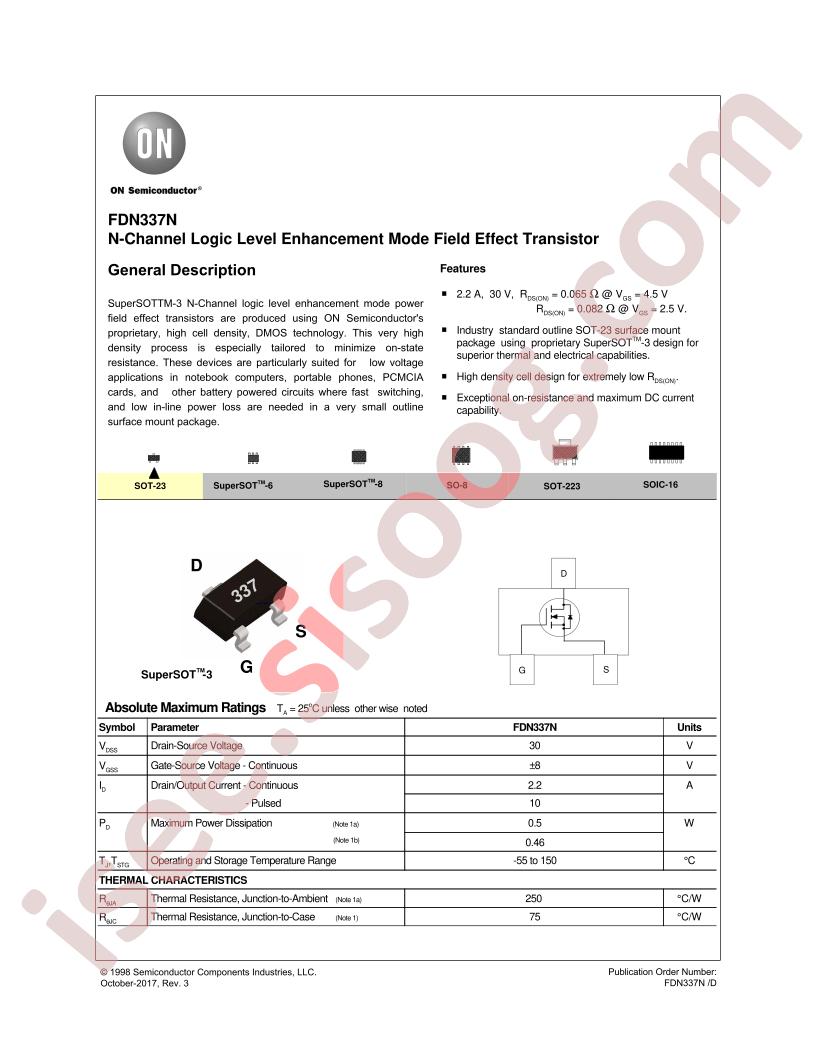

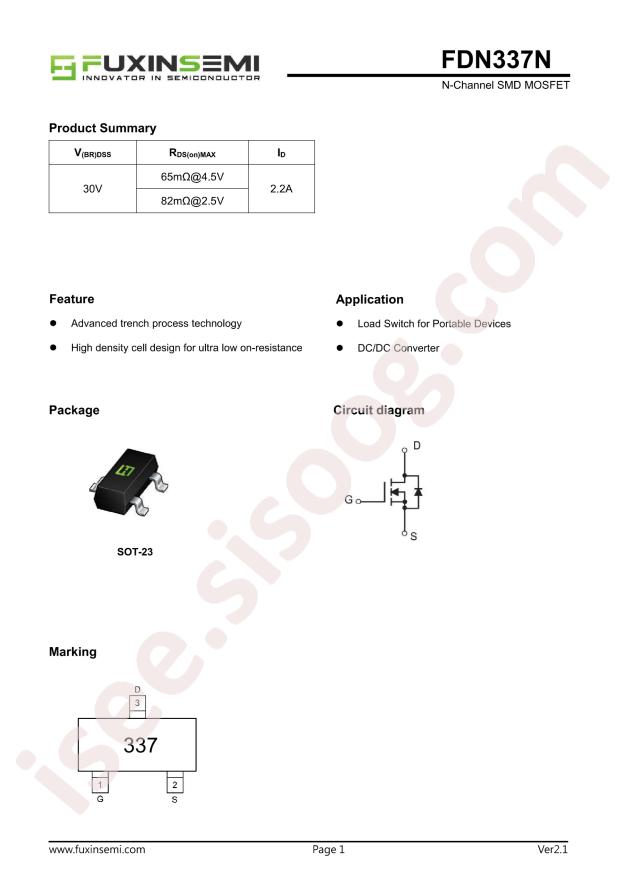

FDN337N Datasheet

مشخصات

  • RoHS: true
  • Type: N Channel
  • Category: Triode/MOS Tube/Transistor/MOSFETs
  • Datasheet: onsemi FDN337N
  • Operating Temperature: -55°C~+150°C@(Tj)
  • Power Dissipation (Pd): 500mW
  • Total Gate Charge (Qg@Vgs): 9nC@4.5V
  • Drain Source Voltage (Vdss): 30V
  • Input Capacitance (Ciss@Vds): 300pF@10V
  • Continuous Drain Current (Id): 2.2A
  • Gate Threshold Voltage (Vgs(th)@Id): 1V@250uA
  • Drain Source On Resistance (RDS(on)@Vgs,Id): 65mΩ@4.5V,2.2A
  • Package: SOT-23-3
  • Manufacturer: onsemi
  • Series: -
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • FET Type: N-Channel
  • Technology: MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss): 30V
  • Current - Continuous Drain (Id) @ 25°C: 2.2A (Ta)
  • Drive Voltage (Max Rds On, Min Rds On): 2.5V, 4.5V
  • Rds On (Max) @ Id, Vgs: 65mOhm @ 2.2A, 4.5V
  • Vgs(th) (Max) @ Id: 1V @ 250µA
  • Gate Charge (Qg) (Max) @ Vgs: 9nC @ 4.5V
  • Vgs (Max): ±8V
  • Input Capacitance (Ciss) (Max) @ Vds: 300pF @ 10V
  • FET Feature: -
  • Power Dissipation (Max): 500mW (Ta)
  • Mounting Type: Surface Mount
  • Supplier Device Package: SuperSOT-3
  • Package / Case: TO-236-3, SC-59, SOT-23-3
  • Base Part Number: FDN337
  • detail: N-Channel 30V 2.2A (Ta) 500mW (Ta) Surface Mount SuperSOT-3
