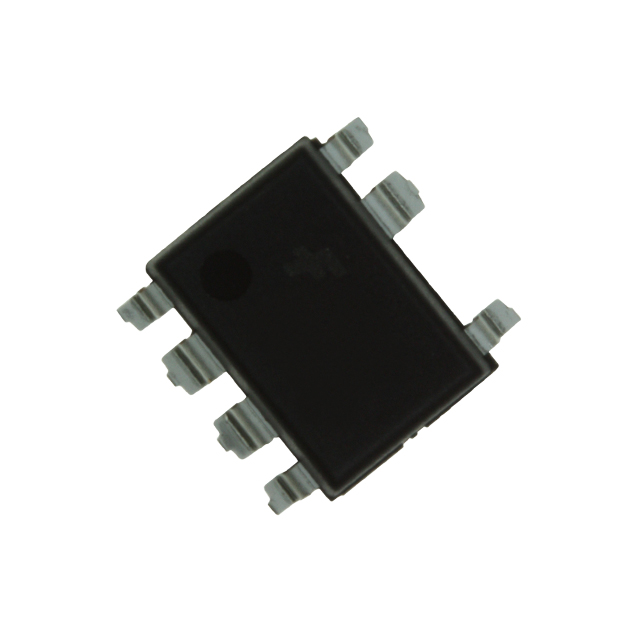

- FSQ510(MX)
FSQ510 Datasheet
Datasheet specifications
| Datasheet's name | FSQ510(MX) |
|---|---|
| File size | 661.729 KB |
| File type | |
| Number of pages | 15 |
Download Datasheet FSQ510(MX) |
Download Datasheet |
|---|
Other documentations
No other documentation was found!
Technical specifications
- Manufacturer: ON Semiconductor
- Series: FPS™
- Packaging: Tube
- Part Status: Active
- Output Isolation: Isolated
- Internal Switch(s): Yes
- Voltage - Breakdown: 700V
- Topology: Flyback
- Voltage - Start Up: 8.7V
- Voltage - Supply (Vcc/Vdd): 6.7V ~ 20V
- Duty Cycle: 60%
- Frequency - Switching: 94.3kHz ~ 132kHz
- Power (Watts): 9W
- Fault Protection: Current Limiting, Over Load, Over Temperature
- Control Features: Sync
- Operating Temperature: -40°C ~ 140°C (TJ)
- Package / Case: 8-DIP (0.300", 7.62mm), 7 Leads
- Supplier Device Package: 7-DIP
- Mounting Type: Through Hole
- Base Part Number: FSQ510
- detail: Converter Offline Flyback Topology 94.3kHz ~ 132kHz 7-DIP
