L6202 数据手册

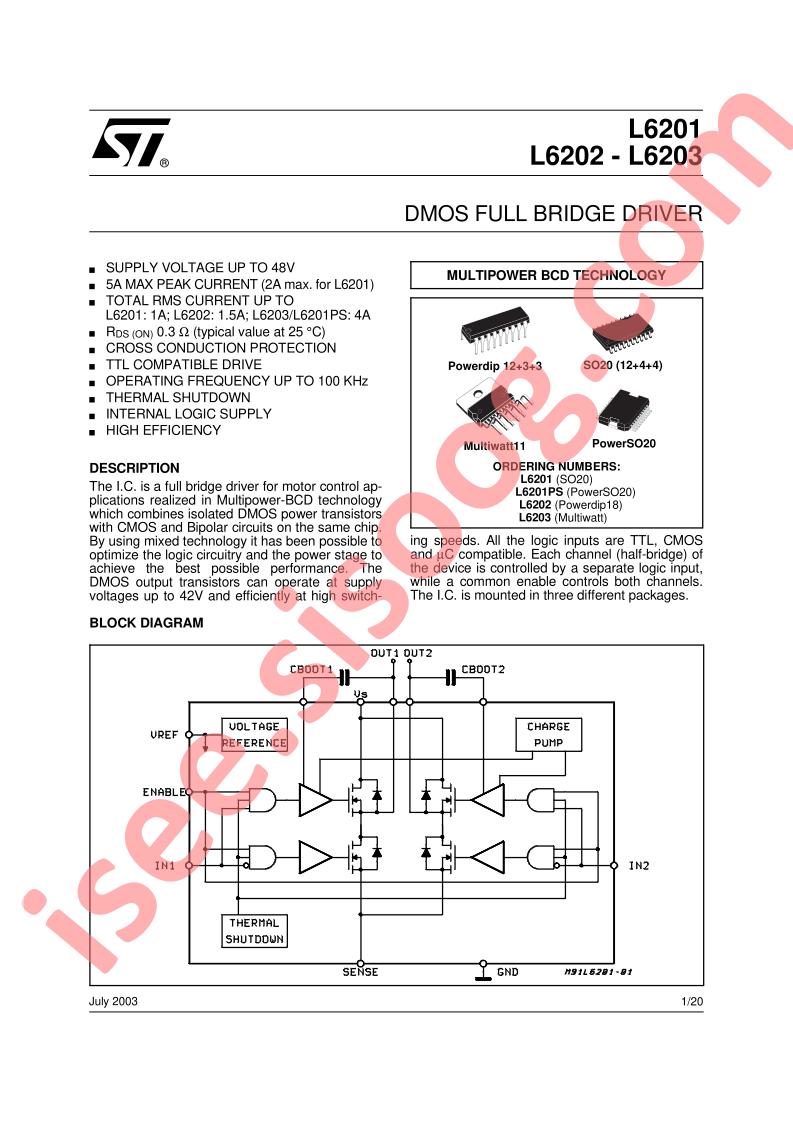

其他文档
L620x 20 pages
技术规格
- RoHS: true
- Category: Power Supply Chip/Motor Driver ICs
- Datasheet: STMicroelectronics L6202
- Interface: -
- Output Current: 1.5A
- Supply Voltage: 12V~48V
- Operating Temperature: -40°C~+150°C@(Tj)
- Package: PowerDIP-18
- Manufacturer: STMicroelectronics
- Series: -
- Packaging: Tube
- Part Status: Active
- Output Configuration: Half Bridge (2)
- Applications: DC Motors, General Purpose
- Load Type: Inductive
- Technology: BCDMOS
- Rds On (Typ): 300mOhm
- Current - Output / Channel: 1.5A
- Current - Peak Output: -
- Voltage - Supply: 12V ~ 48V
- Voltage - Load: 12V ~ 48V
- Features: Bootstrap Circuit
- Fault Protection: Over Temperature
- Mounting Type: Through Hole
- Package / Case: 18-DIP (0.300", 7.62mm)
- Supplier Device Package: 18-PowerDIP
- Base Part Number: L6202
- detail: Half Bridge (2) Driver DC Motors, General Purpose BCDMOS 18-PowerDIP
