STD7NM60N 数据手册
其他文档

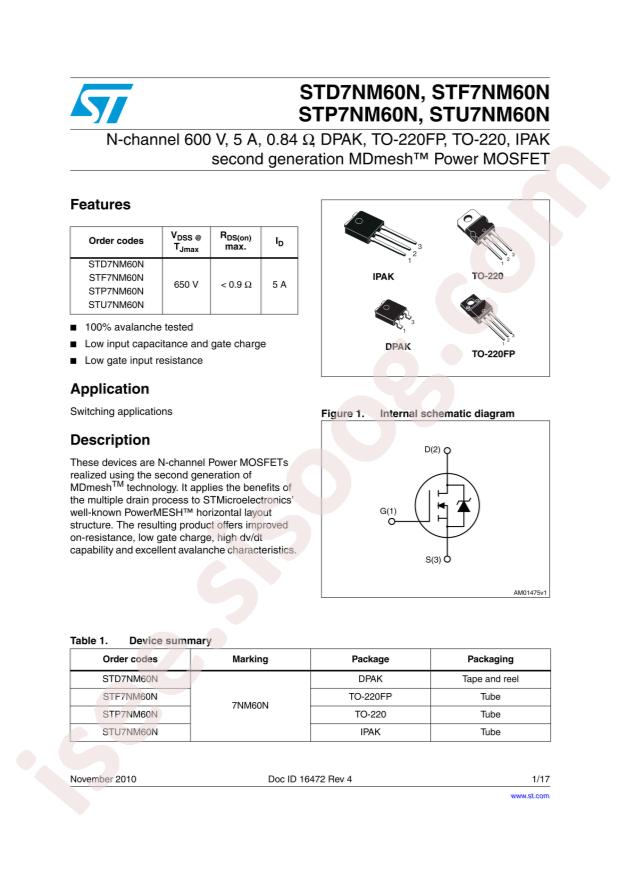

STx7NM60N 26 pages
技术规格
- RoHS: true
- Type: N Channel
- Category: Triode/MOS Tube/Transistor/MOSFETs
- Datasheet: STMicroelectronics STD7NM60N
- Power Dissipation (Pd): 45W
- Total Gate Charge (Qg@Vgs): 14nC@10V
- Drain Source Voltage (Vdss): 600V
- Input Capacitance (Ciss@Vds): 363pF@50V
- Continuous Drain Current (Id): 5A
- Gate Threshold Voltage (Vgs(th)@Id): 4V@250uA
- Drain Source On Resistance (RDS(on)@Vgs,Id): 900mΩ@10V,2.5A
- Package: TO-252-2(DPAK)
- Manufacturer: STMicroelectronics
- Series: MDmesh™ II
- Packaging: Cut Tape (CT)
- Part Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 600V
- Current - Continuous Drain (Id) @ 25°C: 5A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 900mOhm @ 2.5A, 10V
- Vgs(th) (Max) @ Id: 4V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 14nC @ 10V
- Vgs (Max): ±25V
- Input Capacitance (Ciss) (Max) @ Vds: 363pF @ 50V
- FET Feature: -
- Power Dissipation (Max): 45W (Tc)
- Operating Temperature: 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: DPAK
- Package / Case: TO-252-3, DPak (2 Leads + Tab), SC-63
- Base Part Number: STD7
- detail: N-Channel 600V 5A (Tc) 45W (Tc) Surface Mount DPAK
