دیتاشیت SN74HC32N
مشخصات دیتاشیت
| نام دیتاشیت | SN54HC32, SN74HC32 |
|---|---|
| حجم فایل | 1390.45 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 32 |
دانلود دیتاشیت SN54HC32, SN74HC32 |

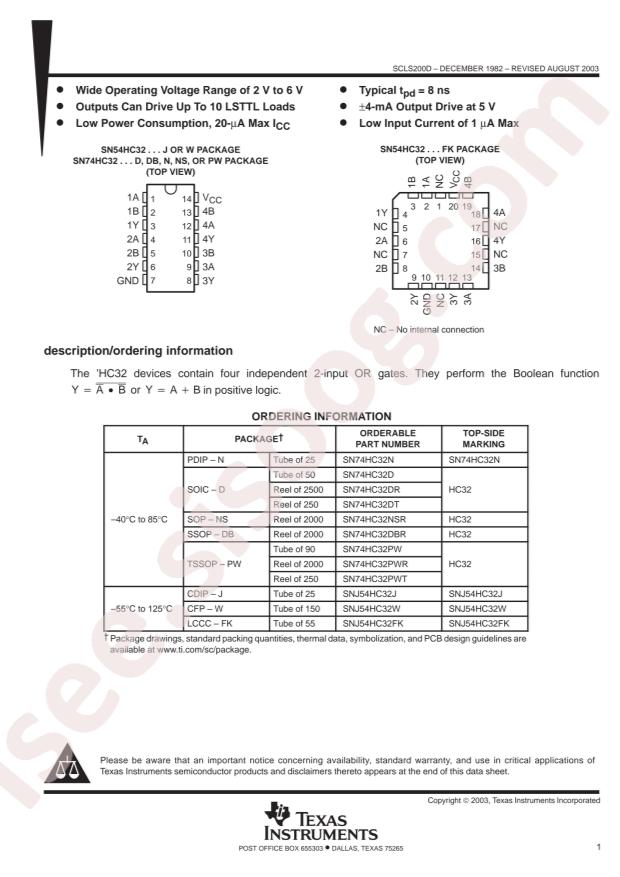

SN54HC32, SN74HC32 Datasheet |
|---|
مشخصات
- RoHS: true
- Series: 74HC
- Category: Logic ICs/Gates
- Datasheet: Texas Instruments SN74HC32N
- Sink Current: 5.2mA
- Source Current: 5.2mA
- Supply Voltage: 2V~6V
- Logic Gate Type: ORGate
- Number of Channels: 4
- Low Level Range (VIL): 0.5V~1.8V
- Low Level Range (VOL): -
- Operating Temperature: -40°C~+85°C
- High Level Range (VIH): 1.5V~4.2V
- High Level Range (VOH): -
- Propagation Delay Time: 17ns@6V,50pF
- Quiescent Current (Max): 2uA
- Package: DIP-14
- Manufacturer: Texas Instruments
- Mounting Type: Through Hole
- Logic Level - Low: 0.5V ~ 1.8V
- Current - Quiescent (Max): 2µA
- Voltage - Supply: 2V ~ 6V
- Number of Circuits: 4
- Packaging: Tube
- Package / Case: 14-DIP (0.300", 7.62mm)
- Logic Level - High: 1.5V ~ 4.2V
- Part Status: Active
- Current - Output High, Low: 5.2mA, 5.2mA
- Features: -
- Base Part Number: SN74HC3
- Supplier Device Package: 14-PDIP
- Number of Inputs: 2
- Logic Type: OR Gate
- Max Propagation Delay @ V, Max CL: 17ns @ 6V, 50pF
- detail: OR Gate IC 4 Channel 14-PDIP
