دیتاشیت TLC5615CP
مشخصات دیتاشیت
| نام دیتاشیت | TLC5615C, TLC5615I |
|---|---|
| حجم فایل | 1112.156 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 24 |
دانلود دیتاشیت TLC5615C, TLC5615I |

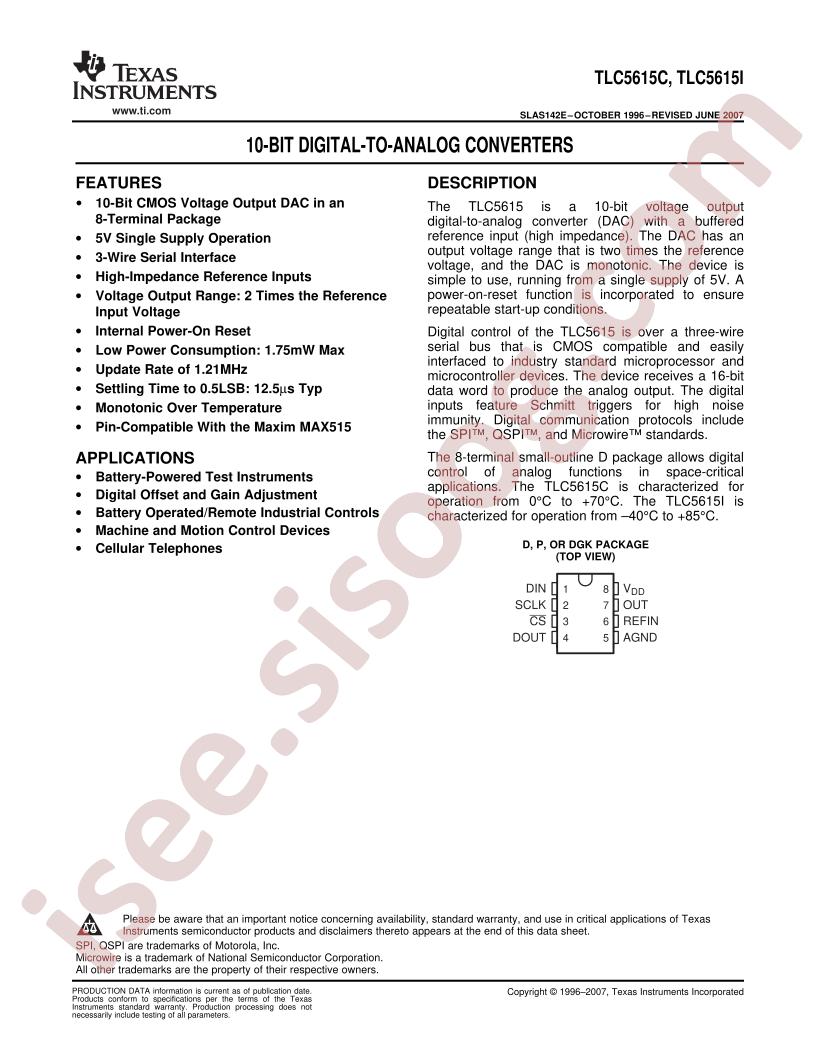

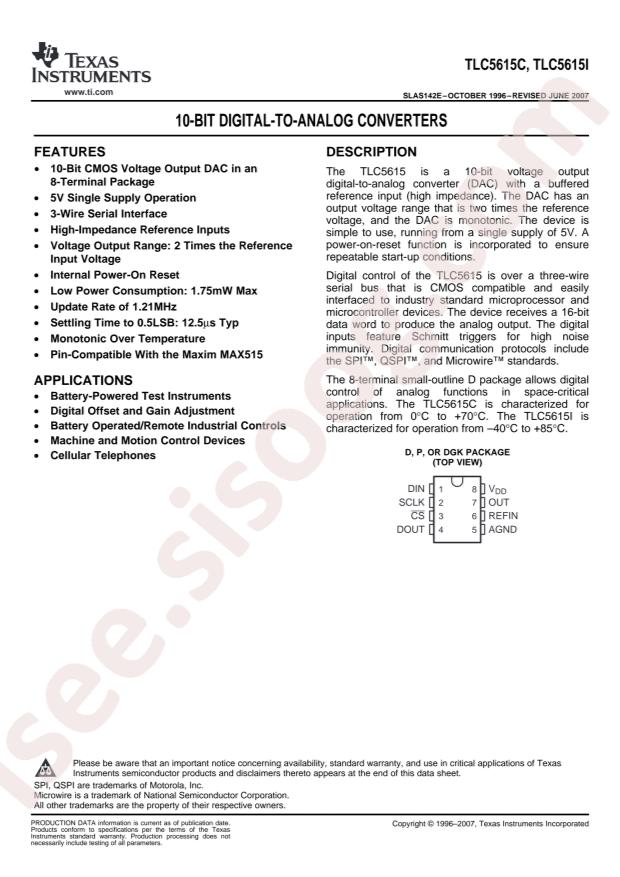

TLC5615C, TLC5615I Datasheet |
|---|
مشخصات
- RoHS: true
- Category: ADC/DAC/Data Conversion/Digital To Analog Converters (DACs)
- Datasheet: Texas Instruments TLC5615CP
- Interface: SPI
- Resolution: 10Bit
- Output Type: Voltage-缓冲
- Settling Time: 12.5us
- Supply Voltage: 5V
- Integral nonlinearity: ±1LSB;±0.1LSB
- Operating Temperature: 0°C~+70°C
- Package: DIP-8
- Manufacturer: Texas Instruments
- Mounting Type: Through Hole
- Architecture: String DAC
- INL/DNL (LSB): ±1 (Max), ±0.1
- Number of Bits: 10
- Part Status: Active
- Package / Case: 8-DIP (0.300", 7.62mm)
- Voltage - Supply, Digital: 5V
- Packaging: Tube
- Data Interface: SPI
- Reference Type: External
- Series: -
- Differential Output: No
- Supplier Device Package: 8-PDIP
- Number of D/A Converters: 1
- Voltage - Supply, Analog: 5V
- Base Part Number: TLC561
- detail: 10 Bit Digital to Analog Converter 1 8-PDIP
