دیتاشیت NL17SZ74USG

NL17SZ74

مشخصات دیتاشیت

نام دیتاشیت NL17SZ74
حجم فایل 198.415 کیلوبایت
نوع فایل pdf
تعداد صفحات 11

دانلود دیتاشیت NL17SZ74

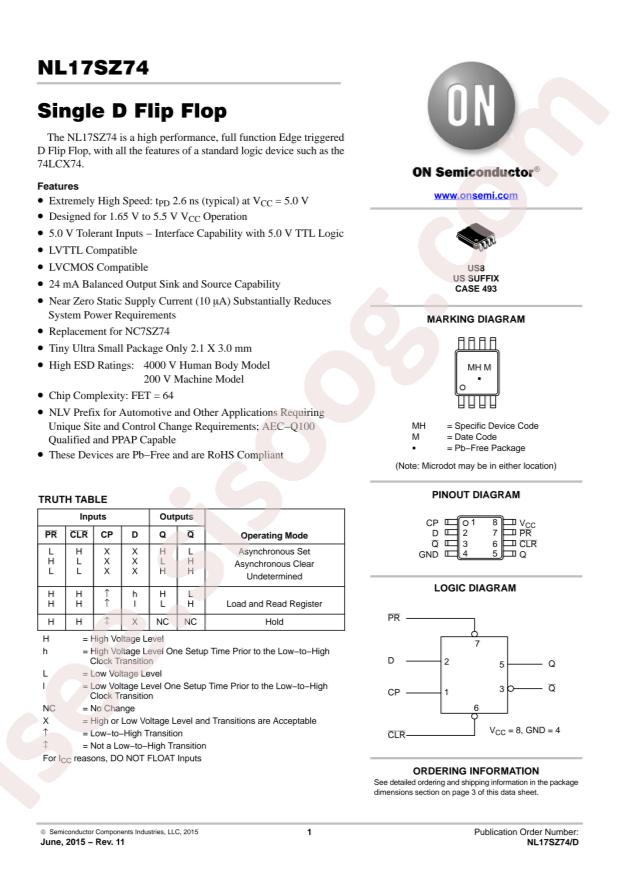

NL17SZ74 Datasheet

مشخصات

  • RoHS: true
  • Type: D-Type
  • Series: 17SZ
  • Category: Logic ICs/Flip Flops
  • Function: 置位和复位
  • Datasheet: onsemi NL17SZ74USG
  • Output Type: 互补型
  • Sink Current: 32mA
  • Trigger Type: 上升沿
  • Source Current: 32mA
  • Supply Voltage: 1.65V~5.5V
  • Clock Frequency: 200MHz
  • Input Capacitance: 7pF
  • Number of Elements: 1
  • Operating Temperature: -55°C~+125°C
  • Quiescent Current (Iq): 1uA
  • Maximum Propagation Delay: 5ns@5V,50pF
  • Number of Bits per Element: 1
  • Package: VFSOP-8
  • Manufacturer: onsemi
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • Max Propagation Delay @ V, Max CL: 5ns @ 5V, 50pF
  • Current - Output High, Low: 32mA, 32mA
  • Voltage - Supply: 1.65V ~ 5.5V
  • Current - Quiescent (Iq): 1µA
  • Mounting Type: Surface Mount
  • Supplier Device Package: US8
  • Package / Case: 8-VFSOP (0.091", 2.30mm Width)
  • Base Part Number: NL17S
