دیتاشیت HGTG11N120CND

HGTG11N120CND

مشخصات دیتاشیت

نام دیتاشیت HGTG11N120CND
حجم فایل 235.422 کیلوبایت
نوع فایل pdf
تعداد صفحات 10

دانلود دیتاشیت HGTG11N120CND

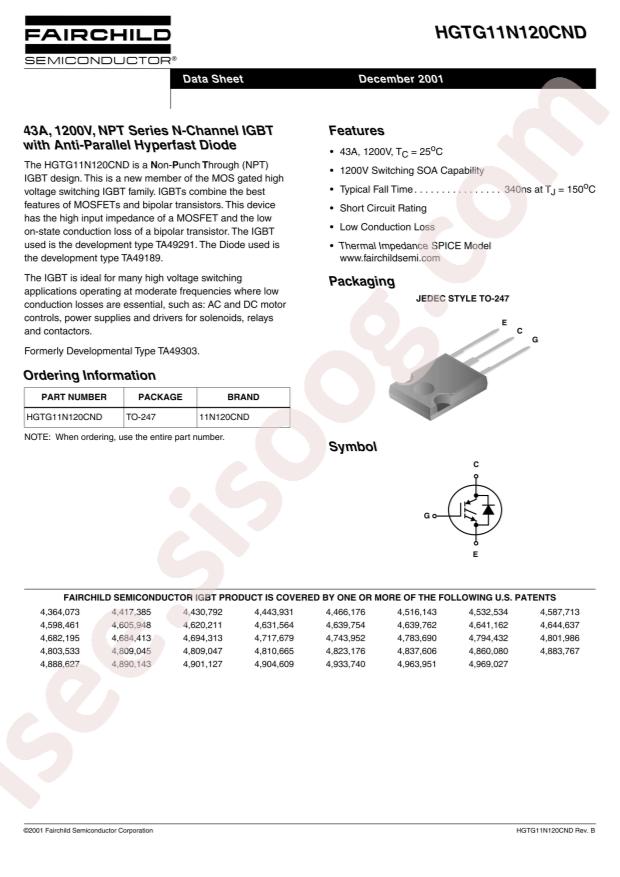

HGTG11N120CND Datasheet

مشخصات

  • RoHS: true
  • Type: NPT
  • Category: Triode/MOS Tube/Transistor/IGBTs
  • Datasheet: onsemi HGTG11N120CND
  • Operating Temperature: -55°C~+150°C@(Tj)
  • Collector Current (Ic): 43A
  • Power Dissipation (Pd): 298W
  • Input Capacitance (Cies@Vce): -
  • Turn?on Switching Loss (Eon): 0.95mJ
  • Pulsed Collector Current (Icm): 80A
  • Turn?off Switching Loss (Eoff): 1.3mJ
  • Diode Reverse Recovery Time (Trr): 70ns
  • Collector-Emitter Breakdown Voltage (Vces): 1200V
  • Gate-Emitter Threshold Voltage (Vge(th)@Ic): -
  • Package: TO-247
  • Manufacturer: onsemi
  • Series: -
  • Packaging: Tube
  • Part Status: Not For New Designs
  • IGBT Type: NPT
  • Voltage - Collector Emitter Breakdown (Max): 1200V
  • Current - Collector (Ic) (Max): 43A
  • Current - Collector Pulsed (Icm): 80A
  • Vce(on) (Max) @ Vge, Ic: 2.4V @ 15V, 11A
  • Power - Max: 298W
  • Switching Energy: 950µJ (on), 1.3mJ (off)
  • Input Type: Standard
  • Gate Charge: 100nC
  • Td (on/off) @ 25°C: 23ns/180ns
  • Test Condition: 960V, 11A, 10Ohm, 15V
  • Reverse Recovery Time (trr): 70ns
  • Mounting Type: Through Hole
  • Package / Case: TO-247-3
  • Supplier Device Package: TO-247-3
  • Base Part Number: HGTG11N120
  • detail: IGBT NPT 1200V 43A 298W Through Hole TO-247-3
