دیتاشیت IXFH13N80

IXFH/IXFM(11,13)N80

مشخصات دیتاشیت

نام دیتاشیت IXFH/IXFM(11,13)N80
حجم فایل 681.373 کیلوبایت
نوع فایل pdf
تعداد صفحات 5

دانلود دیتاشیت IXFH/IXFM(11,13)N80

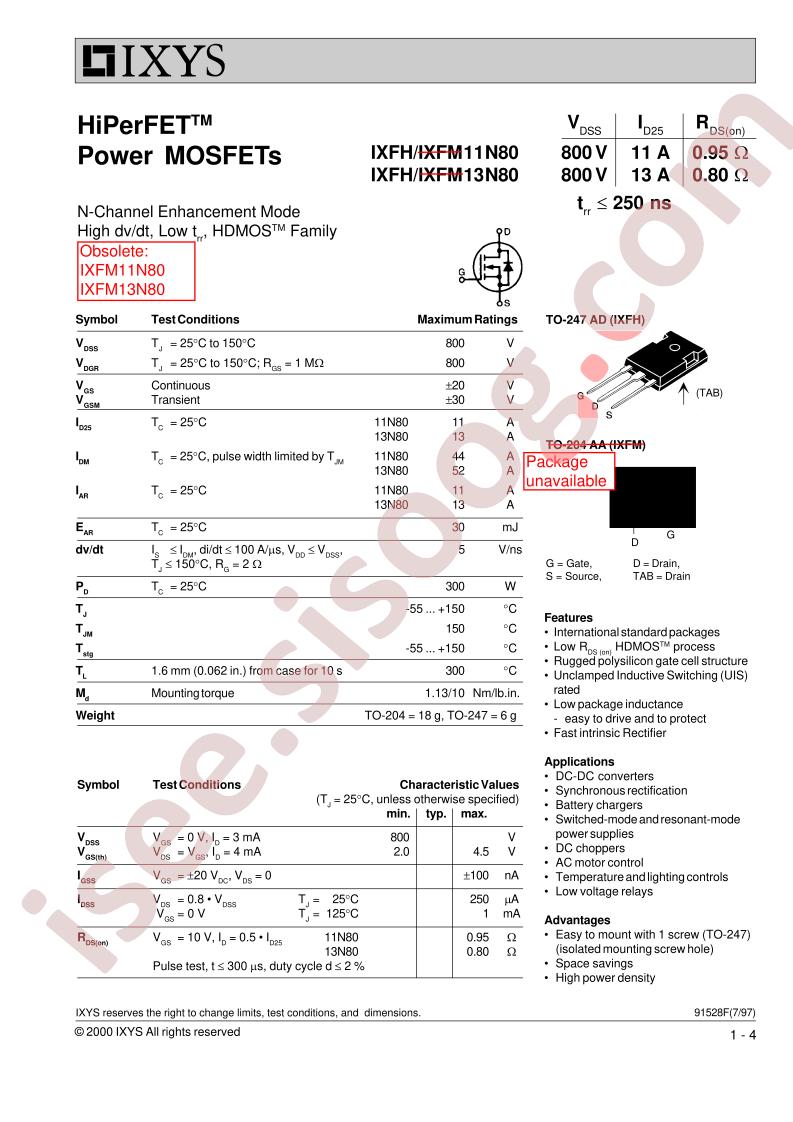

IXFH/IXFM(11,13)N80 Datasheet

مشخصات

  • Manufacturer: IXYS
  • Series: HiPerFET™
  • Packaging: Tube
  • Part Status: Not For New Designs
  • FET Type: N-Channel
  • Technology: MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss): 800V
  • Current - Continuous Drain (Id) @ 25°C: 13A (Tc)
  • Drive Voltage (Max Rds On, Min Rds On): 10V
  • Rds On (Max) @ Id, Vgs: 800mOhm @ 500mA, 10V
  • Vgs(th) (Max) @ Id: 4.5V @ 4mA
  • Gate Charge (Qg) (Max) @ Vgs: 155nC @ 10V
  • Vgs (Max): ±20V
  • Input Capacitance (Ciss) (Max) @ Vds: 4200pF @ 25V
  • FET Feature: -
  • Power Dissipation (Max): 300W (Tc)
  • Operating Temperature: -55°C ~ 150°C (TJ)
  • Mounting Type: Through Hole
  • Supplier Device Package: TO-247AD (IXFH)
  • Package / Case: TO-247-3
  • detail: N-Channel 800V 13A (Tc) 300W (Tc) Through Hole TO-247AD (IXFH)
