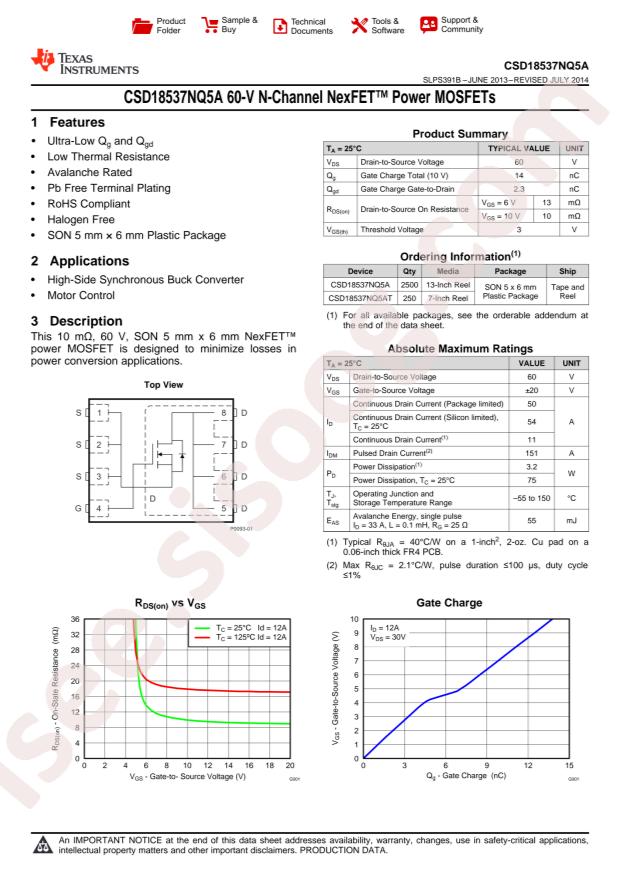

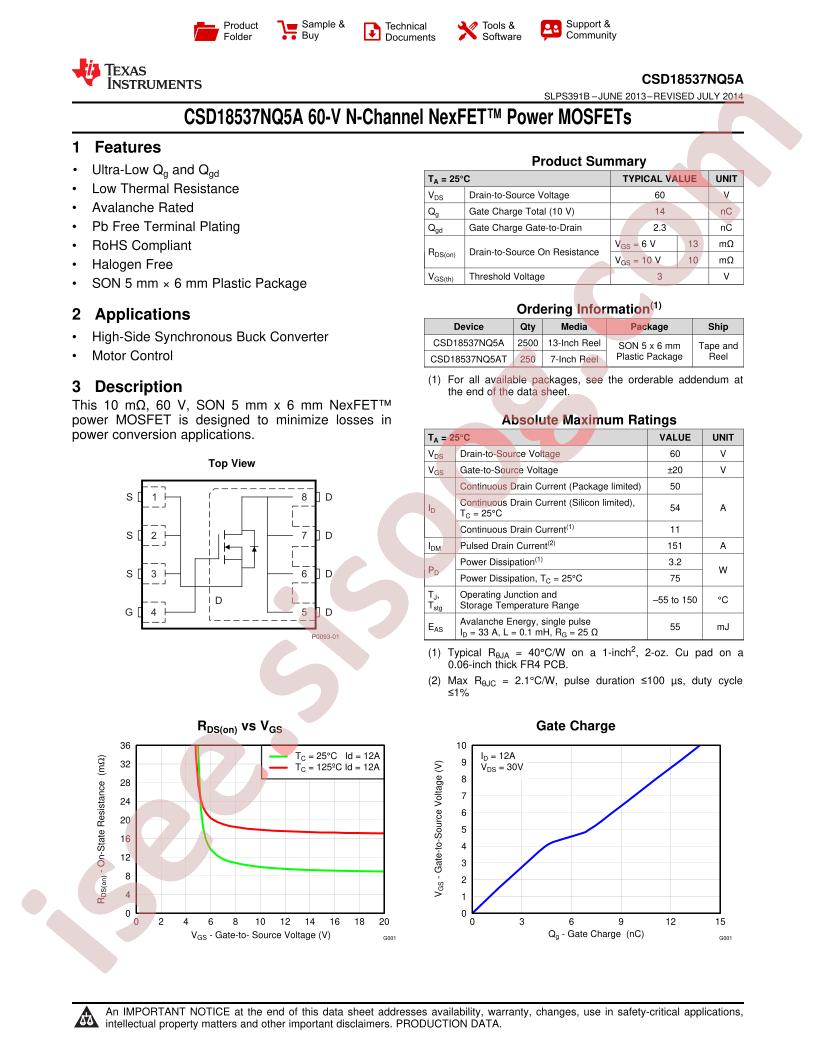

دیتاشیت CSD18537NQ5A
مشخصات دیتاشیت
| نام دیتاشیت |
CSD18537NQ5A
|
| حجم فایل |
741.401
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
14
|
مشخصات
-
RoHS:
true
-
Type:
N Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
Texas Instruments CSD18537NQ5A
-
Power Dissipation (Pd):
3.2W
-
Drain Source Voltage (Vdss):
60V
-
Continuous Drain Current (Id):
11A
-
Gate Threshold Voltage (Vgs(th)@Id):
3.5V@250uA
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
13mΩ@10V,12A
-
Package:
SON-8(6x5)
-
Manufacturer:
Texas Instruments
-
Power Dissipation (Max):
3.2W (Ta), 75W (Tc)
-
Input Capacitance (Ciss) (Max) @ Vds:
1480pF @ 30V
-
Vgs (Max):
±20V
-
Operating Temperature:
-55°C ~ 150°C (TJ)
-
Supplier Device Package:
8-VSONP (5x6)
-
Packaging:
Cut Tape (CT)
-
Mounting Type:
Surface Mount
-
Drive Voltage (Max Rds On, Min Rds On):
6V, 10V
-
Base Part Number:
CSD18537
-
Vgs(th) (Max) @ Id:
3.5V @ 250µA
-
FET Type:
N-Channel
-
Technology:
MOSFET (Metal Oxide)
-
FET Feature:
-
-
Package / Case:
8-PowerTDFN
-
Part Status:
Active
-
Series:
NexFET™
-
Gate Charge (Qg) (Max) @ Vgs:
18nC @ 10V
-
Rds On (Max) @ Id, Vgs:
13mOhm @ 12A, 10V
-
Current - Continuous Drain (Id) @ 25°C:
50A (Tc)
-
Drain to Source Voltage (Vdss):
60V
-
detail:
N-Channel 60V 50A (Tc) 3.2W (Ta), 75W (Tc) Surface Mount 8-VSONP (5x6)
