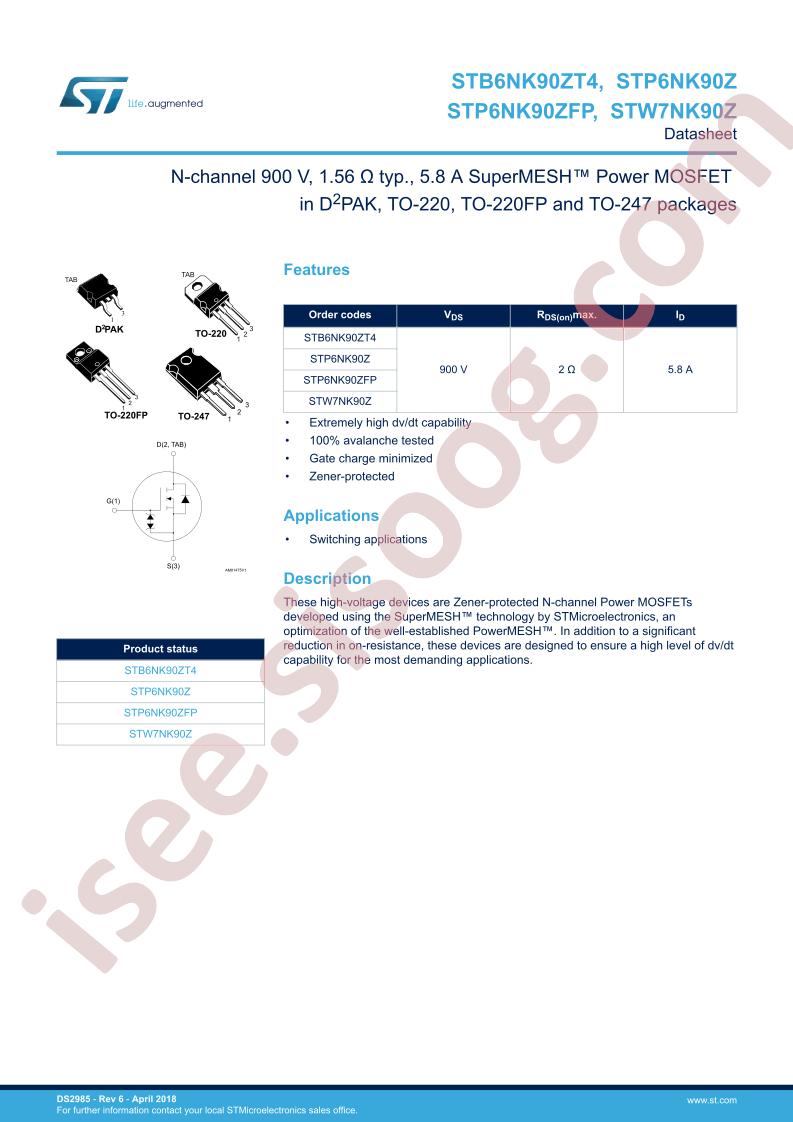

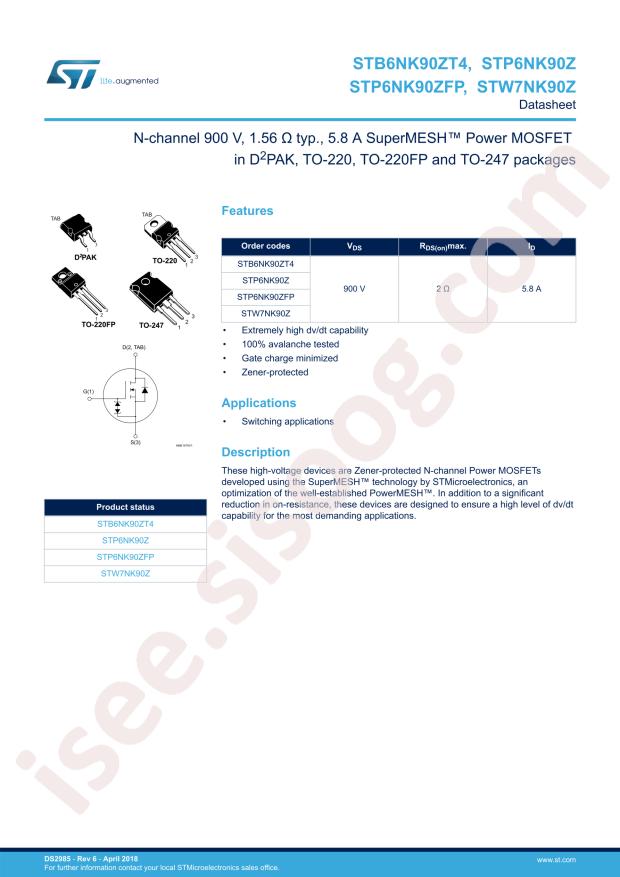

دیتاشیت STP6NK90Z

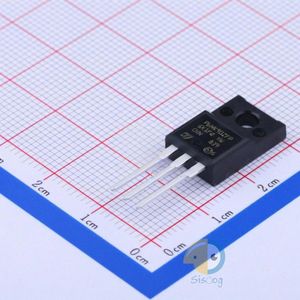

ST(B,P,W)6NK90Z, STP6NK90ZFP

مشخصات دیتاشیت

نام دیتاشیت ST(B,P,W)6NK90Z, STP6NK90ZFP
حجم فایل 669.261 کیلوبایت
نوع فایل pdf
تعداد صفحات 26

دانلود دیتاشیت ST(B,P,W)6NK90Z, STP6NK90ZFP

ST(B,P,W)6NK90Z, STP6NK90ZFP Datasheet

مشخصات

  • RoHS: true
  • Type: N Channel
  • Category: Triode/MOS Tube/Transistor/MOSFETs
  • Datasheet: STMicroelectronics STP6NK90Z
  • Operating Temperature: -55°C~+150°C@(Tj)
  • Power Dissipation (Pd): 140W
  • Total Gate Charge (Qg@Vgs): 60.5nC@10V
  • Drain Source Voltage (Vdss): 900V
  • Input Capacitance (Ciss@Vds): 1350pF@25V
  • Continuous Drain Current (Id): 5.8A
  • Gate Threshold Voltage (Vgs(th)@Id): 4.5V@100uA
  • Drain Source On Resistance (RDS(on)@Vgs,Id): 2Ω@10V,2.9A
  • Package: TO-220
  • Manufacturer: STMicroelectronics
  • Series: SuperMESH™
  • Packaging: Tube
  • Part Status: Active
  • FET Type: N-Channel
  • Technology: MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss): 900V
  • Current - Continuous Drain (Id) @ 25°C: 5.8A (Tc)
  • Drive Voltage (Max Rds On, Min Rds On): 10V
  • Rds On (Max) @ Id, Vgs: 2Ohm @ 2.9A, 10V
  • Vgs(th) (Max) @ Id: 4.5V @ 100µA
  • Gate Charge (Qg) (Max) @ Vgs: 60.5nC @ 10V
  • Vgs (Max): ±30V
  • Input Capacitance (Ciss) (Max) @ Vds: 1350pF @ 25V
  • FET Feature: -
  • Power Dissipation (Max): 140W (Tc)
  • Mounting Type: Through Hole
  • Supplier Device Package: TO-220AB
  • Package / Case: TO-220-3
  • Base Part Number: STP6N
  • detail: N-Channel 900V 5.8A (Tc) 140W (Tc) Through Hole TO-220AB
