دیتاشیت LM224N
مشخصات دیتاشیت
| نام دیتاشیت | LM124, 224x, 324x |
|---|---|
| حجم فایل | 1101.499 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 22 |

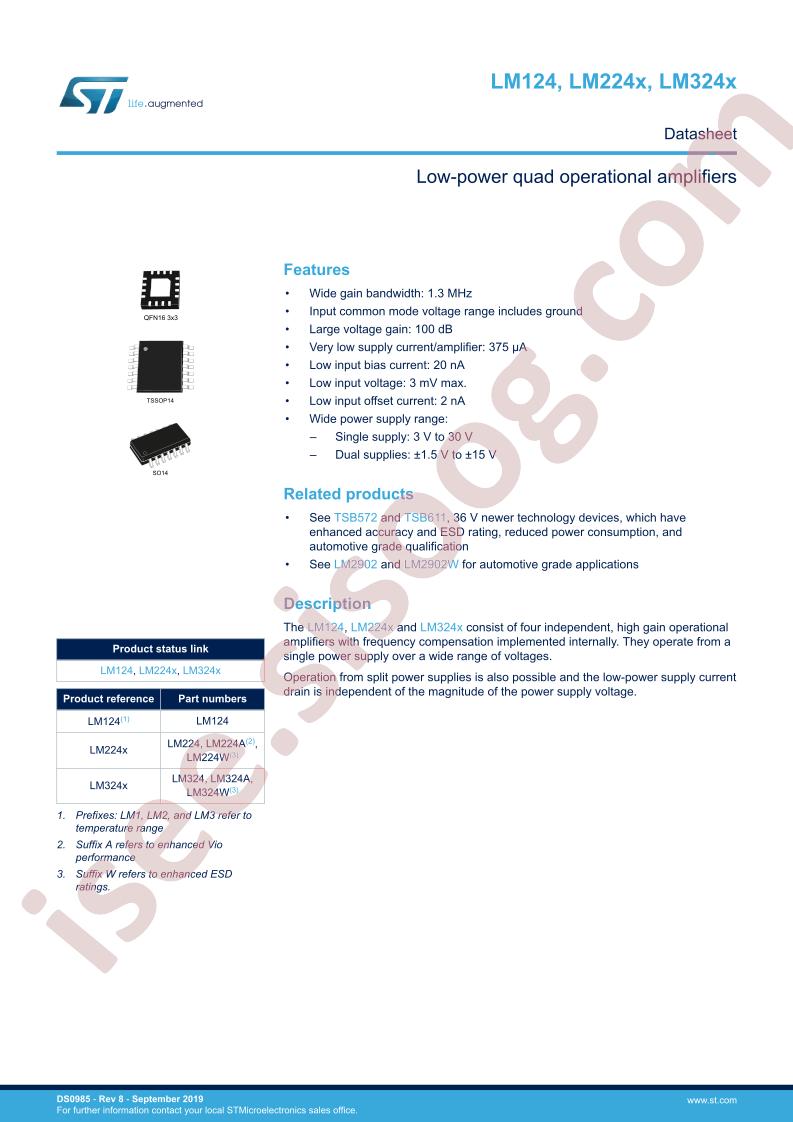

دانلود دیتاشیت LM124, 224x, 324x |
LM124, 224x, 324x Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Operational Amplifier/Comparator/Operational Amplifier

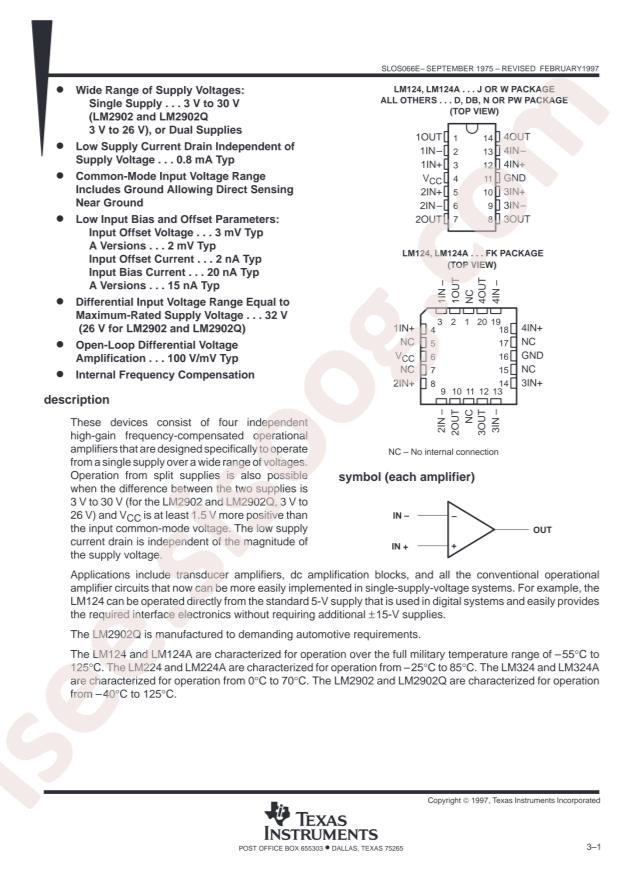

- Datasheet: Texas Instruments LM224N
- -3db Bandwidth: -
- Output Current: 40mA
- Supply Current: 1.4mA
- Number of Circuits: 4
- Operating Temperature: -25°C~+85°C
- Current - Input Bias(Ib): 20nA
- Gain Bandwidth Product(GBP): 1.2MHz
- Package: DIP-14
- Manufacturer: Texas Instruments
- Series: -
- Packaging: Tube
- Part Status: Obsolete
- Amplifier Type: General Purpose
- Output Type: -
- Slew Rate: 0.4V/µs
- Gain Bandwidth Product: 1.3MHz
- Current - Input Bias: 20nA
- Voltage - Input Offset: 2mV
- Current - Supply: 1.5mA
- Current - Output / Channel: 70mA
- Voltage - Supply, Single/Dual (±): 3V ~ 30V, ±1.5V ~ 15V
- Mounting Type: Through Hole
- Package / Case: 14-DIP (0.300", 7.62mm)
- Supplier Device Package: 14-DIP
- Base Part Number: LM224
- detail: General Purpose Amplifier 4 Circuit 14-DIP
