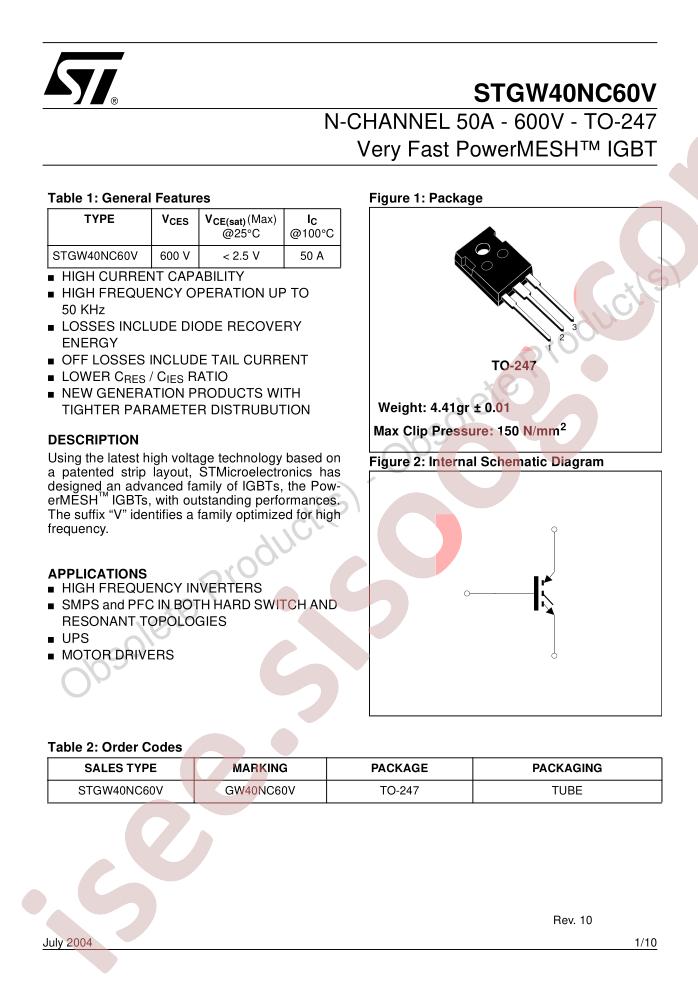

STGW40NC60V دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
STGW40NC60V
|
|
حجم فایل
|
287.525
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
10
|
مشخصات فنی
-
Manufacturer:
STMicroelectronics
-
Series:
PowerMESH™
-
Packaging:
Tube
-
Part Status:
Obsolete
-
IGBT Type:
-
-
Voltage - Collector Emitter Breakdown (Max):
600V
-
Current - Collector (Ic) (Max):
80A
-
Current - Collector Pulsed (Icm):
200A
-
Vce(on) (Max) @ Vge, Ic:
2.5V @ 15V, 40A
-
Power - Max:
260W
-
Switching Energy:
330µJ (on), 720µJ (off)
-
Input Type:
Standard
-
Gate Charge:
214nC
-
Td (on/off) @ 25°C:
43ns/140ns
-
Test Condition:
390V, 40A, 3.3Ohm, 15V
-
Operating Temperature:
-55°C ~ 150°C (TJ)
-
Mounting Type:
Through Hole
-
Package / Case:
TO-247-3
-
Supplier Device Package:
TO-247-3
-
Base Part Number:
STGW40
-
detail:
IGBT 600V 80A 260W Through Hole TO-247-3
