دیتاشیت MBR0540T1G

MBR0540TxG, NRVB0540TxG

مشخصات دیتاشیت

نام دیتاشیت MBR0540TxG, NRVB0540TxG
حجم فایل 181.798 کیلوبایت
نوع فایل pdf
تعداد صفحات 5

دانلود دیتاشیت MBR0540TxG, NRVB0540TxG

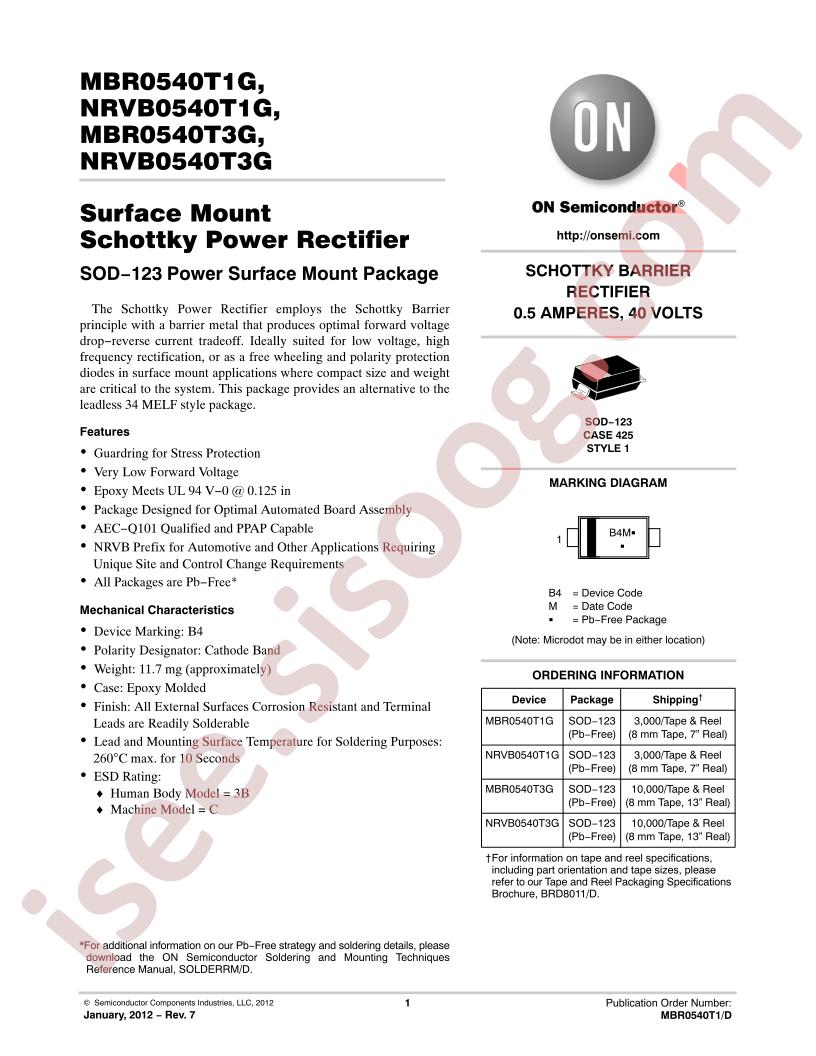

MBR0540TxG, NRVB0540TxG Datasheet

مشخصات

  • RoHS: true
  • Category: Diodes/Schottky Barrier Diodes (SBD)
  • Datasheet: onsemi MBR0540T1G
  • Reverse Voltage (Vr): 40V
  • Forward Voltage (Vf@If): 510mV@500mA
  • Reverse Leakage Current (Ir): 20uA@40V
  • Average Rectified Current (Io): 500mA
  • Package: SOD-123
  • Manufacturer: onsemi
  • Series: -
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • Diode Type: Schottky
  • Voltage - DC Reverse (Vr) (Max): 40V
  • Current - Average Rectified (Io): 500mA
  • Voltage - Forward (Vf) (Max) @ If: 510mV @ 500mA
  • Speed: Fast Recovery =< 500ns, > 200mA (Io)
  • Current - Reverse Leakage @ Vr: 20µA @ 40V
  • Capacitance @ Vr, F: -
  • Mounting Type: Surface Mount
  • Package / Case: SOD-123
  • Supplier Device Package: SOD-123
  • Operating Temperature - Junction: -55°C ~ 150°C
  • Base Part Number: MBR0540
  • detail: Diode Schottky 40V 500mA Surface Mount SOD-123
