دیتاشیت STTH108A

STTH108

مشخصات دیتاشیت

نام دیتاشیت STTH108
حجم فایل 76.407 کیلوبایت
نوع فایل pdf
تعداد صفحات 6

دانلود دیتاشیت STTH108

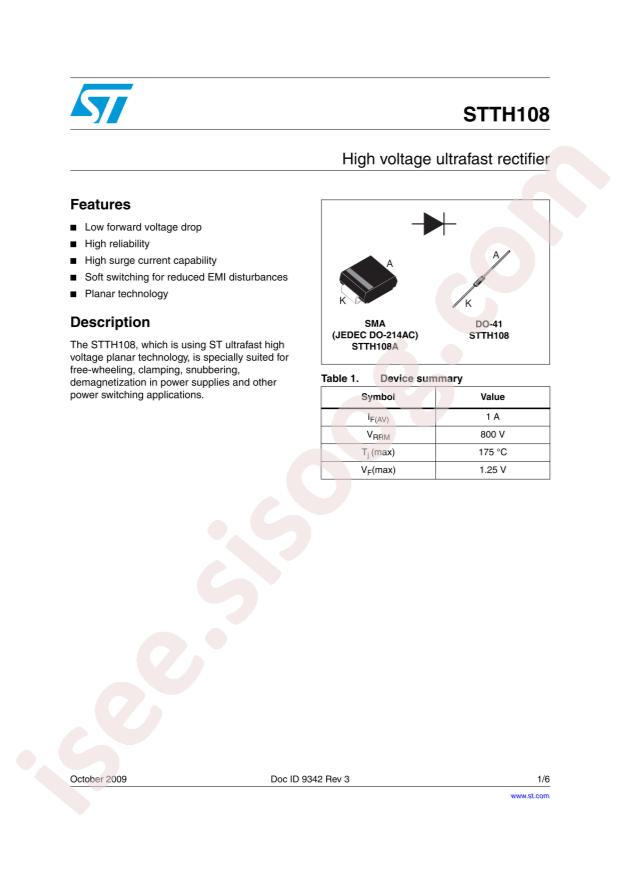

STTH108 Datasheet

مشخصات

  • RoHS: true
  • Category: Diodes/Diodes - Fast Recovery Rectifiers
  • Datasheet: STMicroelectronics STTH108A
  • Reverse Voltage (Vr): 800V
  • Operating Temperature: +175°C
  • Forward Voltage (Vf@If): 1.65V@1A
  • Reverse Leakage Current: 5uA@800V
  • Package: SMA(DO-214AC)
  • Manufacturer: STMicroelectronics
  • Series: -
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • Diode Type: Standard
  • Voltage - DC Reverse (Vr) (Max): 800V
  • Current - Average Rectified (Io): 1A
  • Voltage - Forward (Vf) (Max) @ If: 1.65V @ 1A
  • Speed: Fast Recovery =< 500ns, > 200mA (Io)
  • Reverse Recovery Time (trr): 75ns
  • Current - Reverse Leakage @ Vr: 5µA @ 800V
  • Capacitance @ Vr, F: -
  • Mounting Type: Surface Mount
  • Package / Case: DO-214AC, SMA
  • Supplier Device Package: SMA (DO-214AC)
  • Operating Temperature - Junction: 175°C (Max)
  • Base Part Number: STTH10
  • detail: Diode Standard 800V 1A Surface Mount SMA (DO-214AC)
