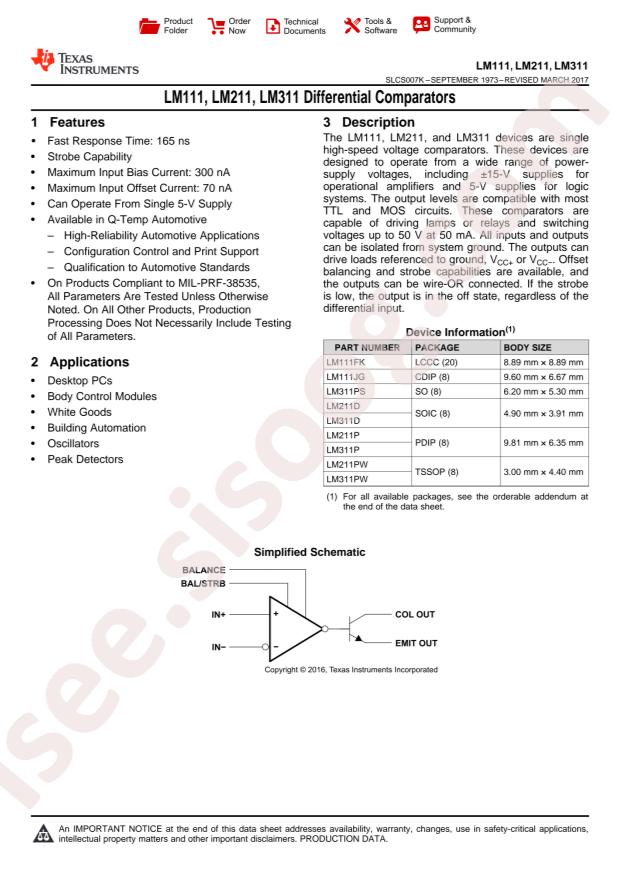

دیتاشیت LM211P
مشخصات دیتاشیت
| نام دیتاشیت |
LM111,211,311
|
| حجم فایل |
2310.748
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
40
|
مشخصات
-
Voltage - Input Offset (Max):
3mV @ ±15V
-
Number of Elements:
1
-
Operating Temperature:
-40°C ~ 85°C
-
Type:
General Purpose
-
Supplier Device Package:
8-PDIP
-
Mounting Type:
Through Hole
-
Output Type:
DTL, MOS, Open-Collector, Open-Emitter, RTL, TTL
-
Current - Quiescent (Max):
6mA
-
Propagation Delay (Max):
-
-
Current - Input Bias (Max):
0.1µA @ ±15V
-
Base Part Number:
LM211
-
Packaging:
Tube
-
Hysteresis:
-
-
Series:
-
-
Current - Output (Typ):
50mA
-
CMRR, PSRR (Typ):
-
-
Part Status:
Active
-
Package / Case:
8-DIP (0.300", 7.62mm)
-
Voltage - Supply, Single/Dual (±):
3.5V ~ 30V, ±1.75V ~ 15V
-
Manufacturer:
Texas Instruments
-
detail:
Comparator General Purpose DTL, MOS, Open-Collector, Open-Emitter, RTL, TTL 8-PDIP
