دیتاشیت SN74HC04N
مشخصات دیتاشیت
| نام دیتاشیت | SN54HC04, SN74HC04 |
|---|---|
| حجم فایل | 1385.832 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 31 |
دانلود دیتاشیت SN54HC04, SN74HC04 |

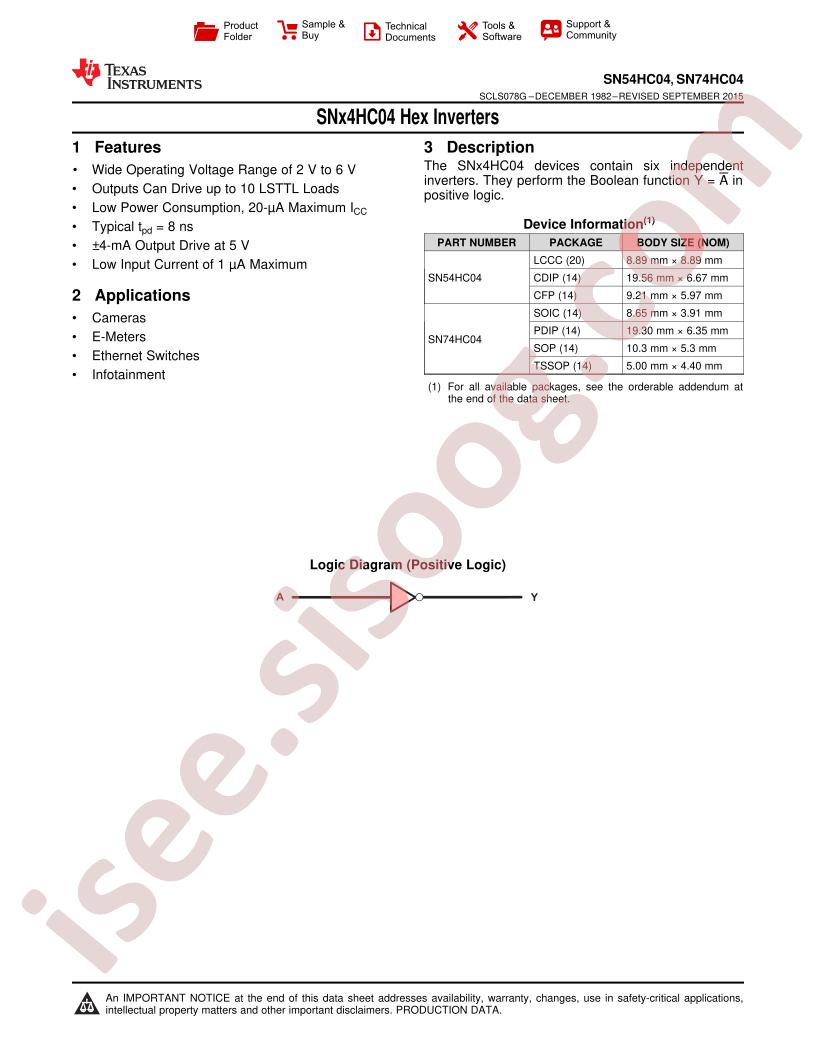

SN54HC04, SN74HC04 Datasheet |
|---|
مشخصات
- RoHS: true
- Series: 74HC
- Category: Logic ICs/Inverters
- Datasheet: Texas Instruments SN74HC04N
- Input Type: -
- Sink Current: 5.2mA
- Source Current: 5.2mA
- Number of Inputs: 1
- Number of Circuits: 6
- Supply Current (Max): 2uA
- Low level range (VIL): 0.5V~1.8V
- Max Propagation Delay: 16ns@6V,50pF
- Operating Temperature: -40°C~+85°C
- High level range (VIH): 1.5V~4.2V
- Supply Voltage(Single): 2V~6V
- Package: DIP-14
- Manufacturer: Texas Instruments
- Supplier Device Package: 14-PDIP
- Mounting Type: Through Hole
- Logic Level - High: 1.5V ~ 4.2V
- Features: -
- Current - Quiescent (Max): 2µA
- Current - Output High, Low: 5.2mA, 5.2mA
- Packaging: Tube
- Logic Level - Low: 0.5V ~ 1.8V
- Voltage - Supply: 2V ~ 6V
- Base Part Number: SN74HC0
- Package / Case: 14-DIP (0.300", 7.62mm)
- Logic Type: Inverter
- Max Propagation Delay @ V, Max CL: 16ns @ 6V, 50pF
- Part Status: Active
