دیتاشیت HCF4053BEY

HCF4053B

مشخصات دیتاشیت

نام دیتاشیت HCF4053B
حجم فایل 484.65 کیلوبایت
نوع فایل pdf
تعداد صفحات 10

دانلود دیتاشیت HCF4053B

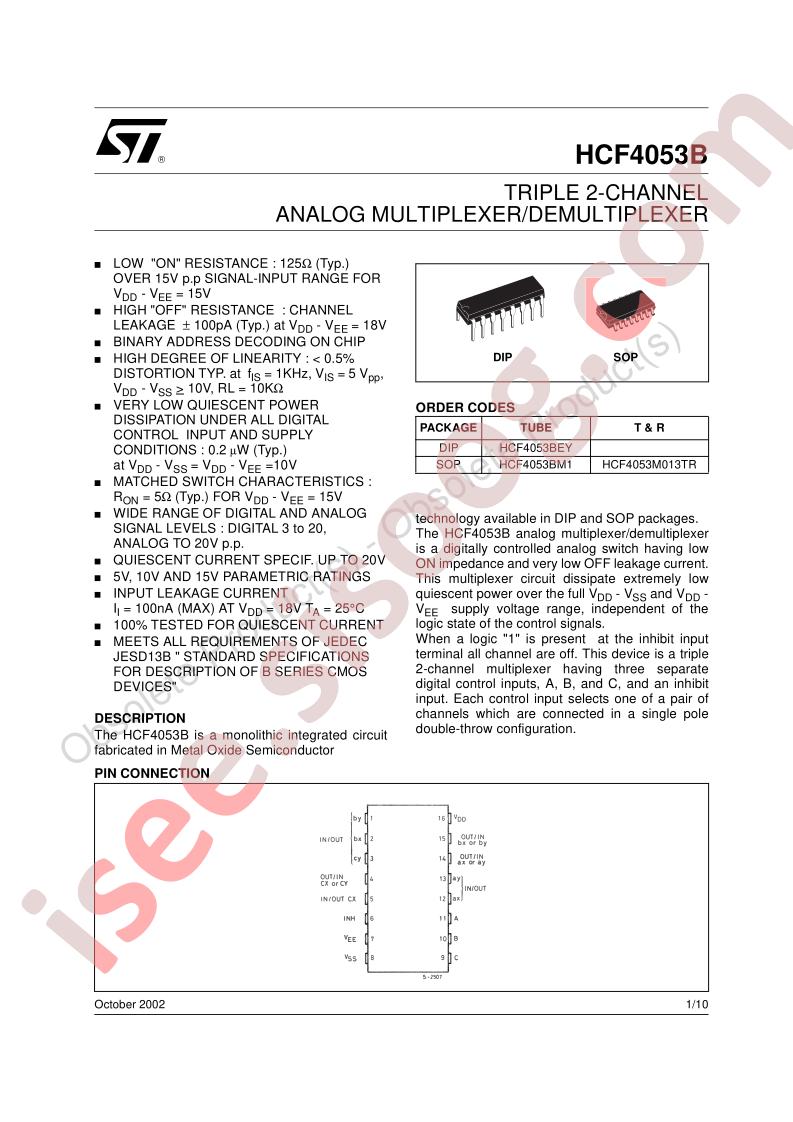

HCF4053B Datasheet

مشخصات

  • Manufacturer: STMicroelectronics
  • Series: -
  • Packaging: Tube
  • Part Status: Obsolete
  • Switch Circuit: SPDT
  • Multiplexer/Demultiplexer Circuit: 2:1
  • Number of Circuits: 3
  • On-State Resistance (Max): 280Ohm
  • Channel-to-Channel Matching (ΔRon): 5Ohm
  • Voltage - Supply, Single (V+): 3V ~ 20V
  • Voltage - Supply, Dual (V±): -
  • Switch Time (Ton, Toff) (Max): -
  • -3db Bandwidth: 60MHz
  • Charge Injection: -
  • Channel Capacitance (CS(off), CD(off)): 0.2pF, 5pF
  • Current - Leakage (IS(off)) (Max): 100nA
  • Crosstalk: -40dB @ 6MHz
  • Operating Temperature: -55°C ~ 125°C (TA)
  • Mounting Type: Through Hole
  • Package / Case: 16-DIP (0.300", 7.62mm)
  • Supplier Device Package: 16-PDIP
  • Base Part Number: HCF4053
  • detail: 3 Circuit IC Switch 2:1 280Ohm 16-PDIP
