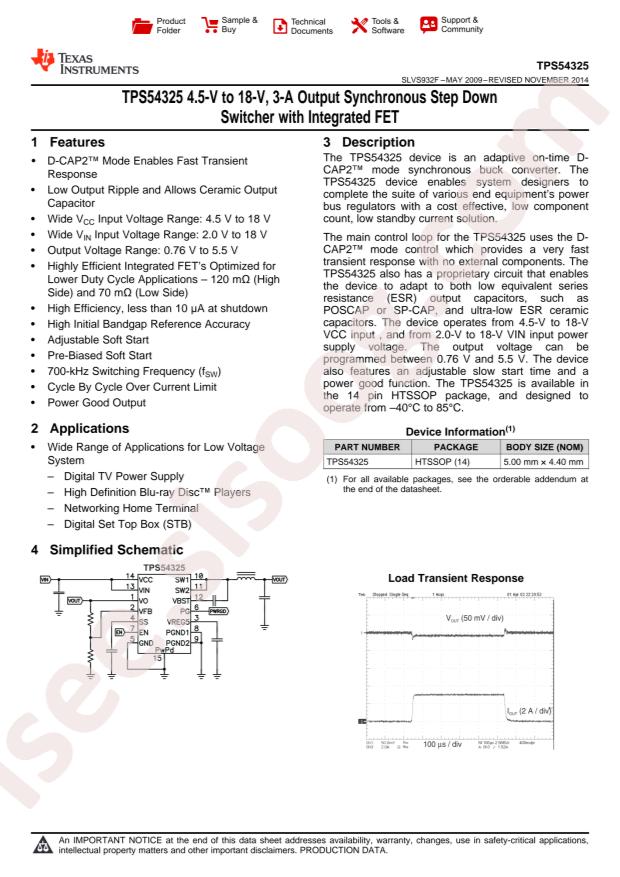

دیتاشیت TPS54325PWPR
مشخصات دیتاشیت
| نام دیتاشیت |
TPS54325
|
| حجم فایل |
1400.06
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
28
|
مشخصات
-
RoHS:
true
-
Category:
Power Supply Chip/DC-DC Converters
-
Function:
Step-down type
-
Topology:
-
-
Datasheet:
Texas Instruments TPS54325PWPR
-
Input Voltage:
-
-
Number of Outputs:
-
-
Switching Frequency:
-
-
Output Current (Max):
-
-
Synchronous Rectification:
-
-
Package:
TSSOP-14-EP
-
Manufacturer:
Texas Instruments
-
Package / Case:
14-PowerTSSOP (0.173", 4.40mm Width)
-
Output Configuration:
Positive
-
Base Part Number:
TPS543
-
Packaging:
Cut Tape (CT)
-
Operating Temperature:
-40°C ~ 85°C (TA)
-
Frequency - Switching:
700kHz
-
Supplier Device Package:
14-HTSSOP
-
Part Status:
Active
-
Current - Output:
3A
-
Series:
D-CAP2™
-
Voltage - Input (Max):
18V
-
Synchronous Rectifier:
Yes
-
Voltage - Output (Min/Fixed):
0.76V
-
Voltage - Input (Min):
2V
-
Mounting Type:
Surface Mount
-
Voltage - Output (Max):
5.5V
-
Output Type:
Adjustable
-
detail:
Buck Switching Regulator IC Positive Adjustable 0.76V 1 Output 3A 14-PowerTSSOP (0.173", 4.40mm Width)
