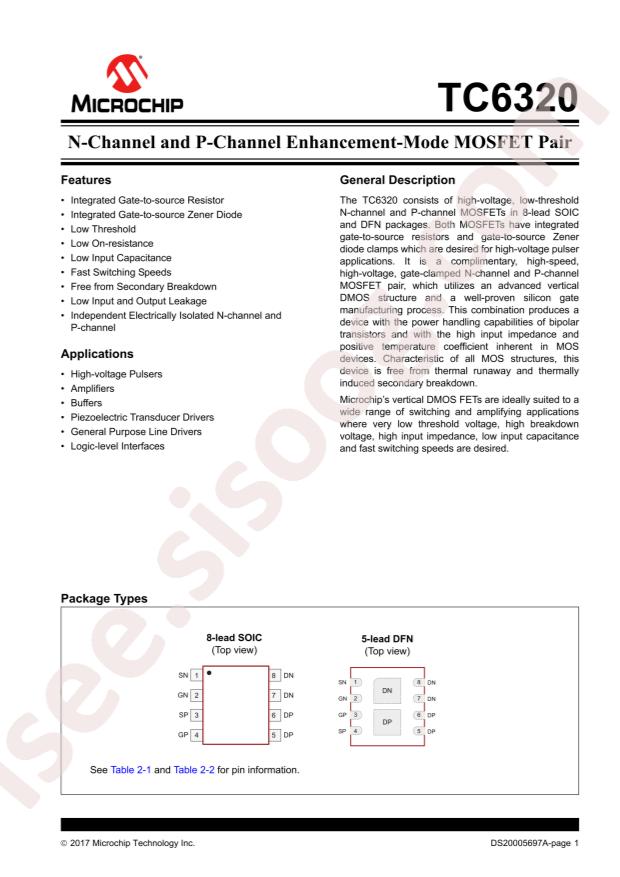

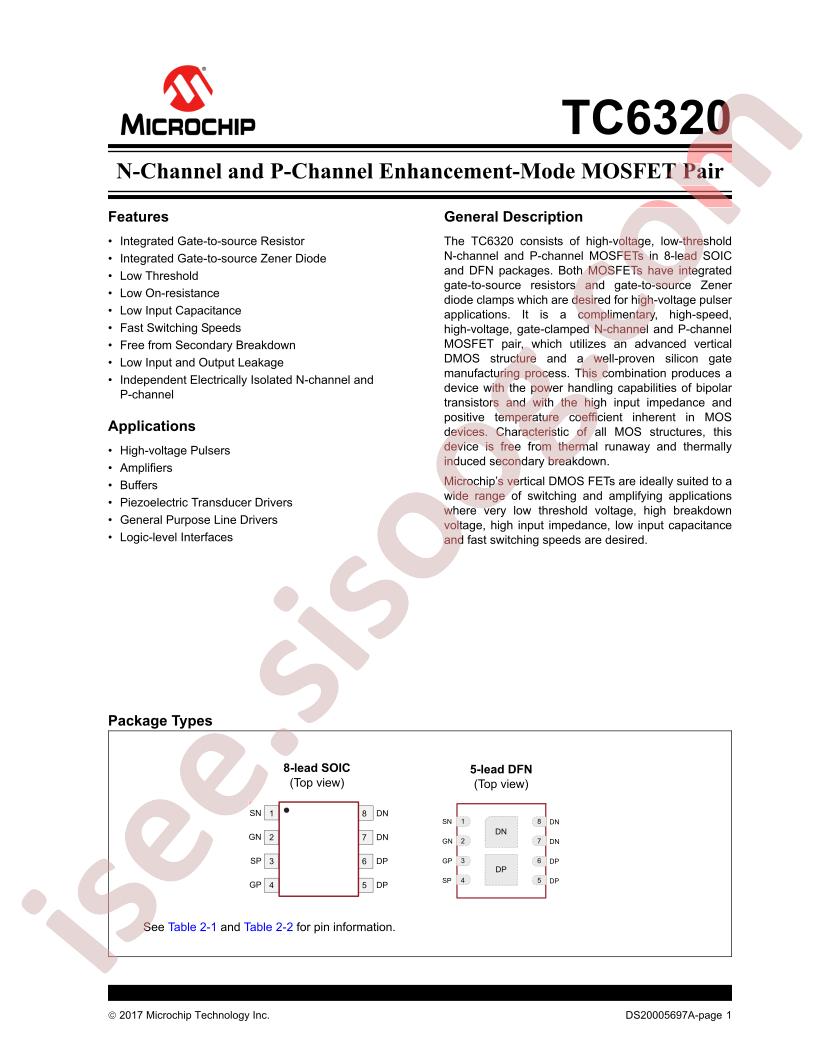

دیتاشیت TC6320TG-G
مشخصات دیتاشیت
| نام دیتاشیت |
TC6320
|
| حجم فایل |
827.403
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
14
|
مشخصات
-
RoHS:
true
-
Type:
1PCSN-Channel&1PCSP-Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
Microchip Tech TC6320TG-G
-
Operating Temperature:
-55°C~+150°C@(Tj)
-
Power Dissipation (Pd):
-
-
Total Gate Charge (Qg@Vgs):
-
-
Drain Source Voltage (Vdss):
200V
-
Input Capacitance (Ciss@Vds):
110pF@25V
-
Continuous Drain Current (Id):
2A
-
Gate Threshold Voltage (Vgs(th)@Id):
2V@1mA;2.4V@1mA
-
Reverse Transfer Capacitance (Crss@Vds):
-
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
7Ω@10V,1A;8Ω@10V,1A
-
Package:
SOP-8
-
Manufacturer:
Microchip Tech
-
Series:
-
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
FET Type:
N and P-Channel
-
FET Feature:
Standard
-
Drain to Source Voltage (Vdss):
200V
-
Current - Continuous Drain (Id) @ 25°C:
-
-
Rds On (Max) @ Id, Vgs:
7Ohm @ 1A, 10V
-
Vgs(th) (Max) @ Id:
2V @ 1mA
-
Gate Charge (Qg) (Max) @ Vgs:
-
-
Input Capacitance (Ciss) (Max) @ Vds:
110pF @ 25V
-
Power - Max:
-
-
Mounting Type:
Surface Mount
-
Package / Case:
8-SOIC (0.154", 3.90mm Width)
-
Supplier Device Package:
8-SOIC
-
Base Part Number:
TC6320
-
detail:
Mosfet Array N and P-Channel 200V Surface Mount 8-SOIC
