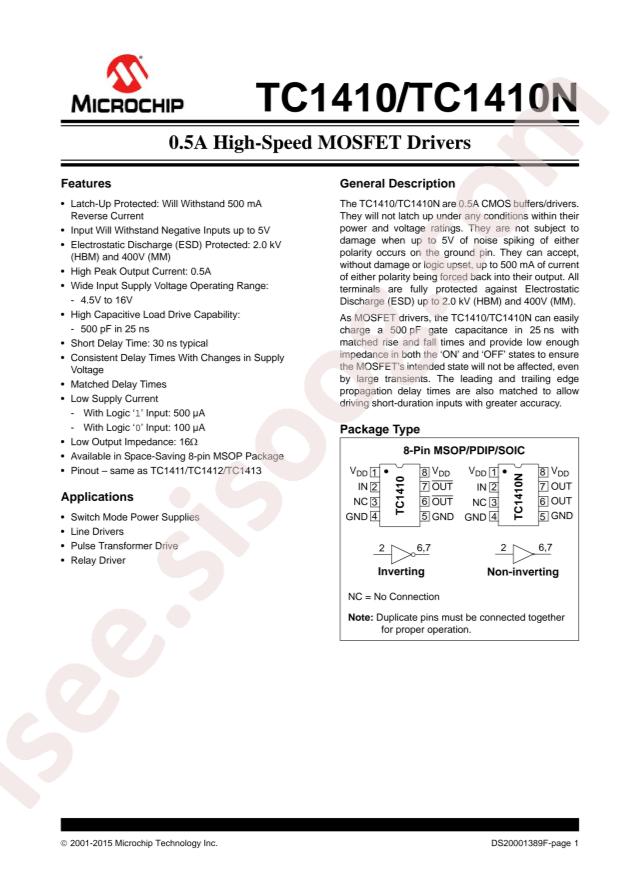

دیتاشیت TC1410NCPA
مشخصات دیتاشیت
| نام دیتاشیت | Analog and Interface Product Guide |
|---|---|
| حجم فایل | 4947.971 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 76 |
دانلود دیتاشیت Analog and Interface Product Guide |
Analog and Interface Product Guide Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Power Supply Chip/Gate Drive ICs
- Datasheet: Microchip Tech TC1410NCPA
- Fall Time: 25ns
- Load Type: MOSFET
- Rise Time: 25ns
- Supply Voltage: 4.5V~16V
- Number of Drivers: 1
- Driven Configuration: Low Side
- Operating Temperature: 0°C~+150°C@(Tj)
- Peak Output Current(sink): 500mA
- Peak Output Current(source): 500mA
- Package: PDIP-8
- Manufacturer: Microchip Tech
- Series: -
- Packaging: Tube
- Part Status: Active
- Channel Type: Single
- Gate Type: N-Channel, P-Channel MOSFET
- Voltage - Supply: 4.5V ~ 16V
- Logic Voltage - VIL, VIH: 0.8V, 2V
- Current - Peak Output (Source, Sink): 500mA, 500mA
- Input Type: Non-Inverting
- Rise / Fall Time (Typ): 25ns, 25ns
- Mounting Type: Through Hole
- Package / Case: 8-DIP (0.300", 7.62mm)
- Supplier Device Package: 8-PDIP
- Base Part Number: TC1410N
- detail: Low-Side Gate Driver IC Non-Inverting 8-PDIP
