دیتاشیت NGTB40N120SWG

NGTB40N120SWG

مشخصات دیتاشیت

نام دیتاشیت NGTB40N120SWG
حجم فایل 86.106 کیلوبایت
نوع فایل pdf
تعداد صفحات 5

دانلود دیتاشیت NGTB40N120SWG

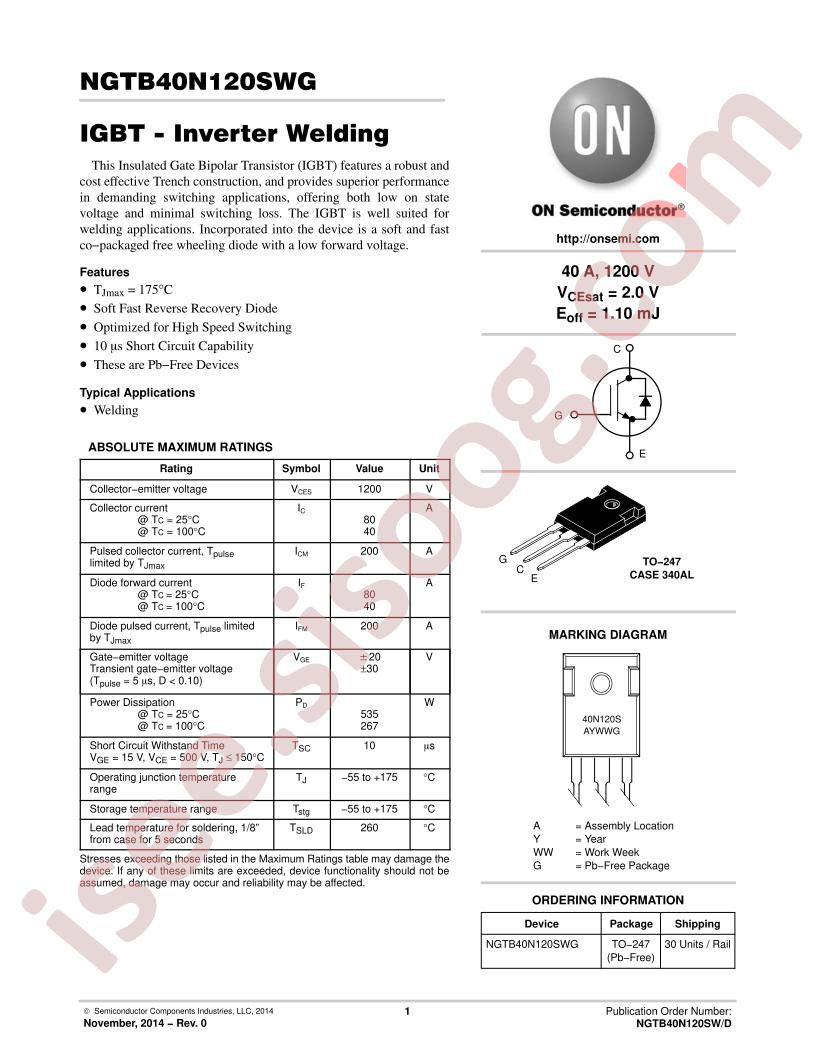

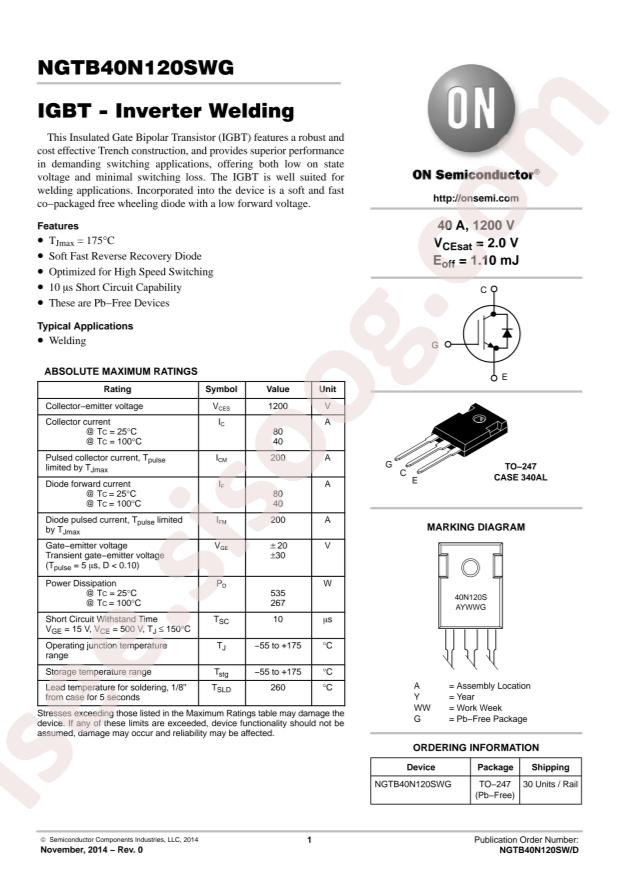

NGTB40N120SWG Datasheet

مشخصات

  • Manufacturer: ON Semiconductor
  • Series: -
  • Packaging: Tube
  • Part Status: Obsolete
  • IGBT Type: Trench
  • Voltage - Collector Emitter Breakdown (Max): 1200V
  • Current - Collector (Ic) (Max): 80A
  • Current - Collector Pulsed (Icm): 200A
  • Vce(on) (Max) @ Vge, Ic: 2.4V @ 15V, 40A
  • Power - Max: 535W
  • Switching Energy: 3.4mJ (on), 1.1mJ (off)
  • Input Type: Standard
  • Gate Charge: 313nC
  • Td (on/off) @ 25°C: 116ns/286ns
  • Test Condition: 600V, 40A, 10Ohm, 15V
  • Reverse Recovery Time (trr): 240ns
  • Operating Temperature: -55°C ~ 175°C (TJ)
  • Mounting Type: Through Hole
  • Package / Case: TO-247-3
  • Supplier Device Package: TO-247-3
  • Base Part Number: NGTB40
