دیتاشیت LMV321IDCKR
مشخصات دیتاشیت
| نام دیتاشیت | LMV358, LMV321, LMV324, LMV324S |
|---|---|
| حجم فایل | 2492.21 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 51 |

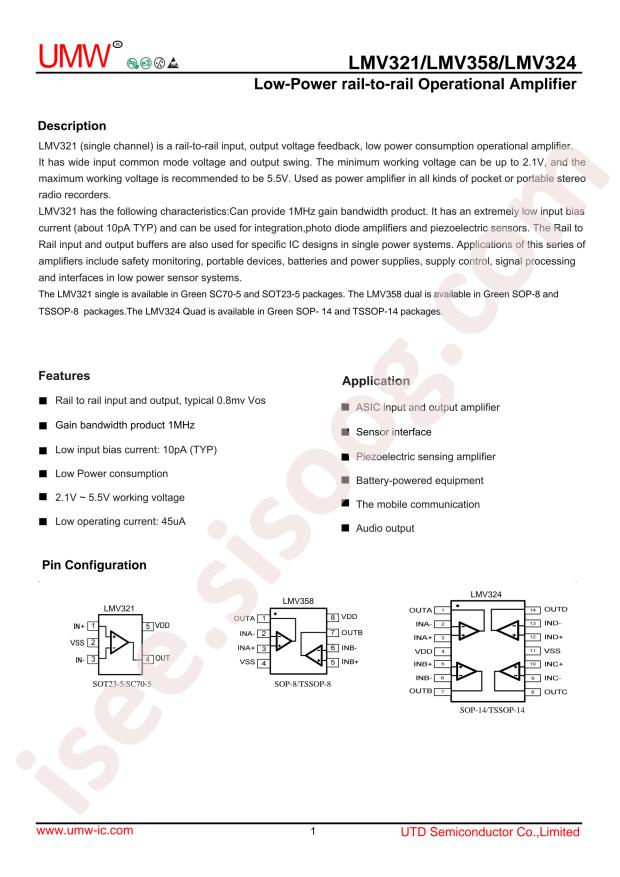

دانلود دیتاشیت LMV358, LMV321, LMV324, LMV324S |
LMV358, LMV321, LMV324, LMV324S Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Operational Amplifier/Comparator/Operational Amplifier
- Datasheet: Texas Instruments LMV321IDCKR
- Rail to Rail: 轨到轨
- -3db Bandwidth: -
- Output Current: 160mA
- Number of Circuits: 1
- Operating Temperature: -40°C~+125°C
- Current - Input Bias(Ib): 15nA
- Gain Bandwidth Product(GBP): 1MHz
- Package: SC-70-5
- Manufacturer: Texas Instruments
- Voltage - Supply, Single/Dual (±): 2.7V ~ 5.5V, ±1.35V ~ 2.75V
- Current - Input Bias: 15nA
- Supplier Device Package: SC-70-5
- Packaging: Cut Tape (CT)
- Mounting Type: Surface Mount
- Base Part Number: LMV321
- Voltage - Input Offset: 1.7mV
- Amplifier Type: General Purpose
- Gain Bandwidth Product: 1MHz
- Current - Output / Channel: 160mA
- Output Type: Rail-to-Rail
- Package / Case: 5-TSSOP, SC-70-5, SOT-353
- Part Status: Active
- Series: -
- Slew Rate: 1V/µs
- Current - Supply: 130µA
- detail: General Purpose Amplifier 1 Circuit Rail-to-Rail SC-70-5
