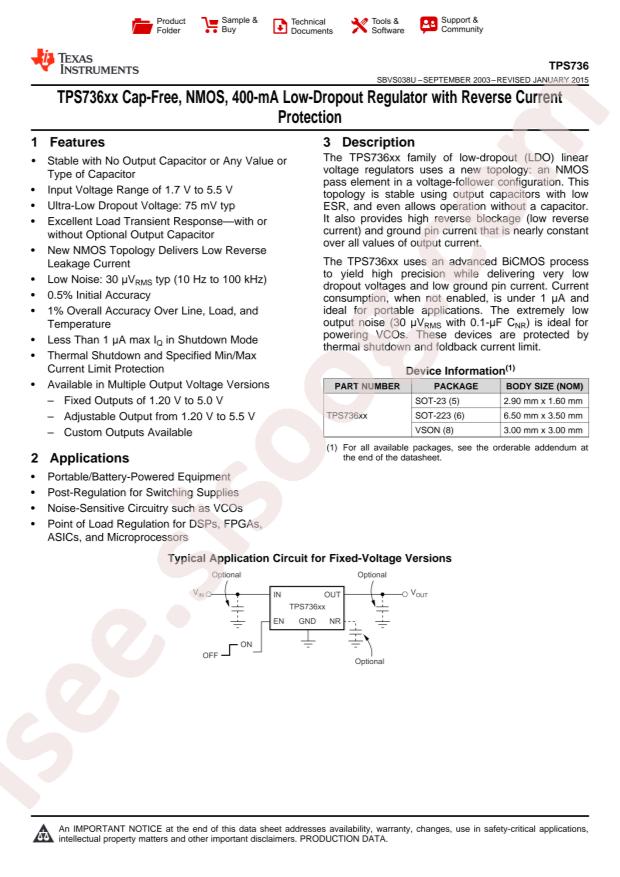

TPS73625DBVT Datasheet
Datasheet specifications
|
Datasheet's name
|
TPS73625DBVT
|
|
File size
|
93.281
KB
|
|
File type
|
pdf
|
|
Number of pages
|
43
|
Technical specifications
-
RoHS:
true
-
Category:
Power Supply Chip/Linear Voltage Regulators (LDO)
-
Datasheet:
Texas Instruments TPS73625DBVT
-
Output Type:
Fixed
-
Output Current:
400mA
-
Output Voltage:
2.5V~2.5V
-
Dropout Voltage:
200mV@(400mA)
-
Output Polarity:
Positive
-
Number of Outputs:
1
-
Maximum Input Voltage:
5.5V
-
Operating Temperature:
-40°C~+125°C
-
Quiescent Current (Ground Current):
550uA
-
Power Supply Rejection Ratio (PSRR):
58dB@(100Hz),37dB@(10kHz)
-
Package:
SOT-23-5
-
Manufacturer:
Texas Instruments
-
Voltage Dropout (Max):
0.2V @ 400mA
-
Package / Case:
SC-74A, SOT-753
-
Control Features:
Enable
-
Current - Output:
400mA
-
Output Configuration:
Positive
-
Voltage - Output (Min/Fixed):
2.5V
-
Supplier Device Package:
SOT-23-5
-
Part Status:
Active
-
Current - Supply (Max):
1mA
-
Base Part Number:
TPS736
-
PSRR:
58dB ~ 37dB (100Hz ~ 10kHz)
-
Protection Features:
Over Current, Over Temperature, Reverse Polarity
-
Packaging:
Cut Tape (CT)
-
Voltage - Output (Max):
-
-
Voltage - Input (Max):
5.5V
-
Series:
-
-
Mounting Type:
Surface Mount
-
Current - Quiescent (Iq):
550µA
-
Number of Regulators:
1
-
detail:
Linear Voltage Regulator IC 1 Output 400mA SOT-23-5
