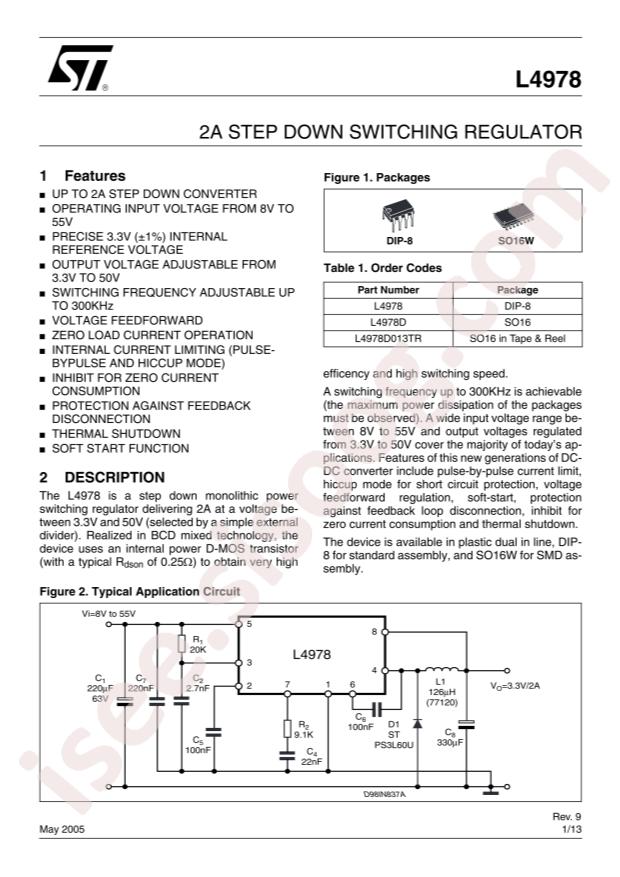

دیتاشیت L4978
مشخصات دیتاشیت
| نام دیتاشیت |
L4978
|
| حجم فایل |
592.348
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
13
|
مشخصات
-
RoHS:
true
-
Category:
Power Supply Chip/DC-DC Converters
-
Function:
Step-down type
-
Topology:
Step-down
-
Datasheet:
STMicroelectronics L4978
-
Output Type:
Adjustable
-
Input Voltage:
8V~55V
-
Output Voltage:
3.3V~50V
-
Number of Outputs:
1
-
Switching Frequency:
300kHz
-
Output Current (Max):
2A
-
Operating Temperature:
-40°C~+150°C@(TJ)
-
Synchronous Rectification:
NO
-
Package:
DIP-8
-
Manufacturer:
STMicroelectronics
-
Series:
-
-
Packaging:
Tube
-
Part Status:
Active
-
Output Configuration:
Positive
-
Voltage - Input (Min):
8V
-
Voltage - Input (Max):
55V
-
Voltage - Output (Min/Fixed):
3.3V
-
Voltage - Output (Max):
50V
-
Current - Output:
2A
-
Frequency - Switching:
100kHz ~ 300kHz
-
Synchronous Rectifier:
No
-
Mounting Type:
Through Hole
-
Package / Case:
8-DIP (0.300", 7.62mm)
-
Supplier Device Package:
8-DIP
-
Base Part Number:
L4978
