دیتاشیت STM32L433VCT6
مشخصات دیتاشیت

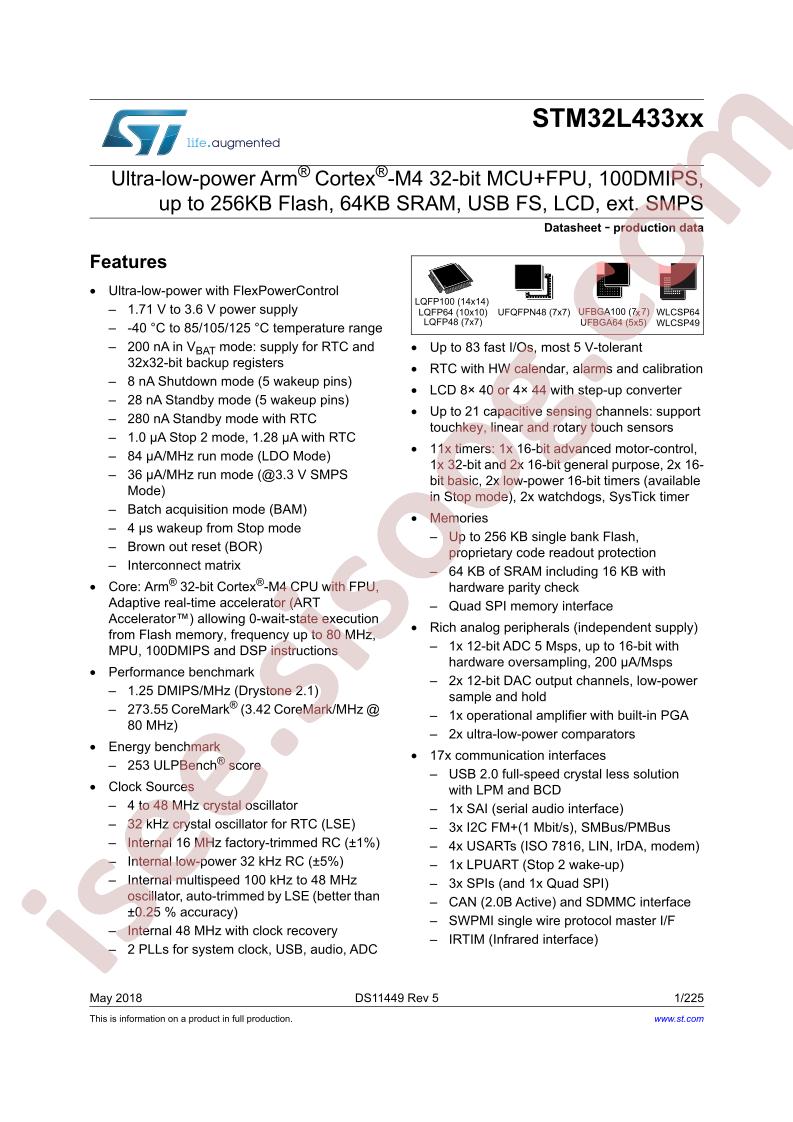

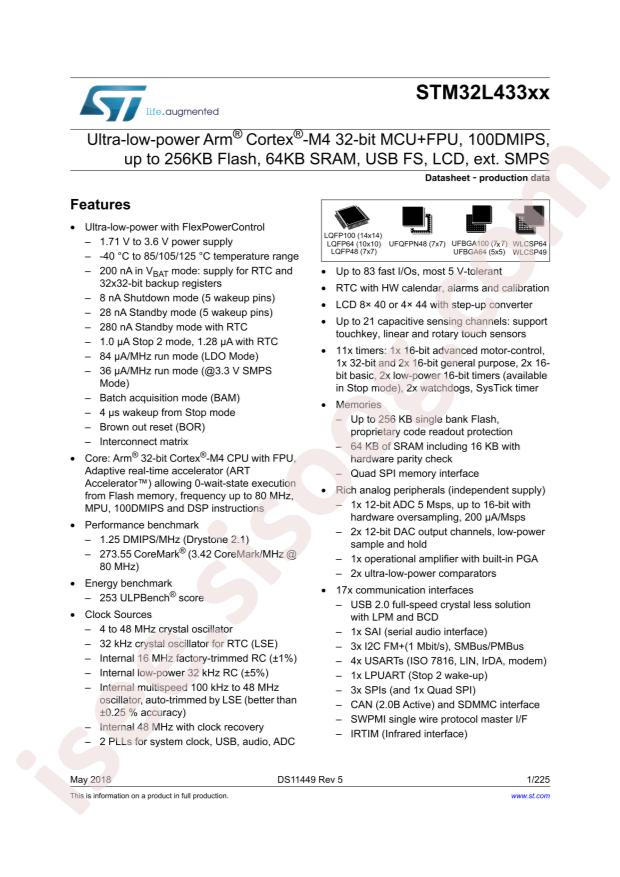

| نام دیتاشیت | STM32L433xx Datasheet |
|---|---|
| حجم فایل | 3102.788 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 225 |
دانلود دیتاشیت STM32L433xx Datasheet |
STM32L433xx Datasheet Datasheet |
|---|
مشخصات
- RoHS: true
- EEPROM: -
- CPU Core: ARM Cortex-M4
- Category: Single Chip Microcomputer/Microcontroller/Microcontroller Units (MCUs/MPUs/SOCs)
- RAM Size: 64KB
- Watchdog: Yes
- ADC (Bit): 12bit
- DAC (Bit): 12bit
- Datasheet: STMicroelectronics STM32L433VCT6
- PWM (Bit): -
- LCD Module: Yes
- Real-Time Clock: -
- CPU Maximum Speed: 80MHz
- GPIO Ports Number: 83
- Low-Voltage Detect: -
- CCP Capture/Compare: -
- Internal Comparator: -
- Internal Oscillator: Yes
- Peripheral/Function: DMA;LCD/LED Driver;PWM
- Program Memory Type: FLASH
- Direct Memory Access: Yes
- Program Storage Size: 256KB
- Universal Serial Bus: Yes
- communication protocol: -
- Operating Voltage Range: 1.71V~3.6V
- Infrared Data Association: Yes
- Operating Temperature Range: -40°C~+85°C
- Secure Digital Input and Output: -
- Package: LQFP-100(14x14)
- Manufacturer: STMicroelectronics
- Series: STM32L4
- Packaging: Tray
- Part Status: Active
- Core Processor: ARM® Cortex®-M4
- Core Size: 32-Bit
- Speed: 80MHz
- Connectivity: CANbus, I²C, IrDA, LINbus, MMC/SD, QSPI, SAI, SPI, SWPMI, UART/USART, USB
- Peripherals: Brown-out Detect/Reset, DMA, LCD, PWM, WDT
- Number of I/O: 83
- Program Memory Size: 256KB (256K x 8)
- EEPROM Size: -
- Voltage - Supply (Vcc/Vdd): 1.71V ~ 3.6V
- Data Converters: A/D 16x12b; D/A 2x12b
- Oscillator Type: Internal
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 100-LQFP
- Supplier Device Package: 100-LQFP (14x14)
- Base Part Number: STM32L433
- detail: ARM® Cortex®-M4 STM32L4 Microcontroller IC 32-Bit 80MHz 256KB (256K x 8) FLASH 100-LQFP (14x14)
