دیتاشیت SN74LS245N

SN54LS245, SN74LS245

مشخصات دیتاشیت

نام دیتاشیت SN54LS245, SN74LS245
حجم فایل 1571.077 کیلوبایت
نوع فایل pdf
تعداد صفحات 30

دانلود دیتاشیت SN54LS245, SN74LS245

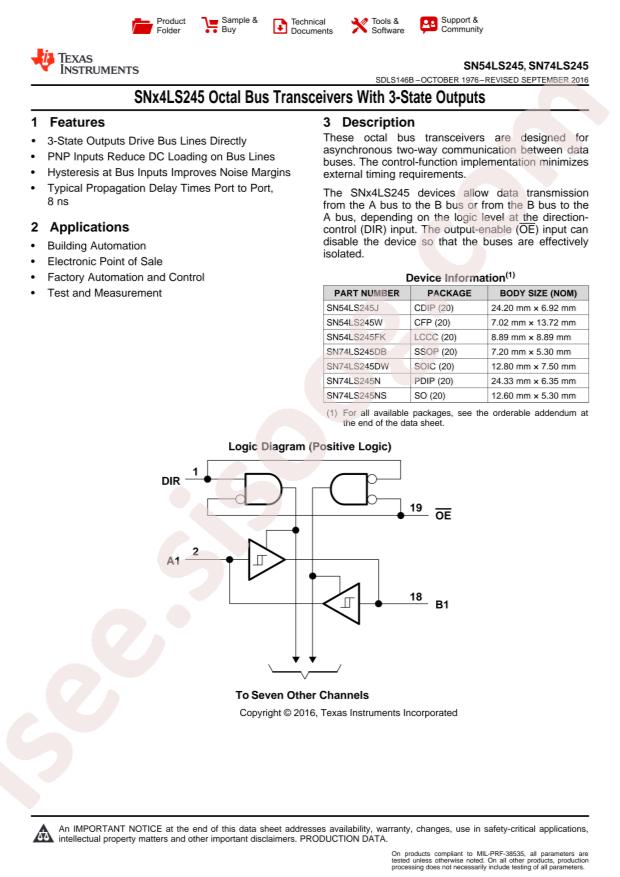

SN54LS245, SN74LS245 Datasheet

مشخصات

  • RoHS: true
  • Category: Logic ICs/Buffer/Driver/Transceiver
  • Datasheet: Texas Instruments SN74LS245N
  • output type: Tri-State
  • Logic Family: 74LS
  • Sink Current: 24mA
  • Source Current: 15mA
  • Supply Voltage: 4.75V~5.25V
  • Number of Elements: 1
  • Operating Temperature: 0°C~+70°C
  • Number of Bits per Element: 8
  • Package: DIP-20
  • Manufacturer: Texas Instruments
  • Voltage - Supply: 4.75V ~ 5.25V
  • Input Type: -
  • Mounting Type: Through Hole
  • Packaging: Tube
  • Package / Case: 20-DIP (0.300", 7.62mm)
  • Part Status: Active
  • Current - Output High, Low: 15mA, 24mA
  • Series: 74LS
  • Supplier Device Package: 20-PDIP
  • Logic Type: Transceiver, Non-Inverting
  • Base Part Number: SN74LS24
